DF08, DF005 1.0A BRIDGE RECTIFIER

DF08 Description

DF005 - DF10 POWER SEMICONDUCTOR .

DF08 Features

* Low Forward Voltage Drop, High Current Capability
* Surge Overload Rating to 50A Peak

DF08 Applications

* Plastic Material - UL Flammability Classification 94V-0
* UL Listed Under Recognized Component Index, File Number E95060 Mechanical Data
* Case: Molded Plastic
* Terminals: Solder Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: As Marked on

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF08, DF005. Please refer to the document for exact specifications by model.

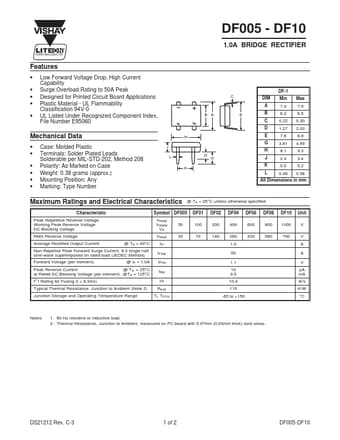

datasheet Preview Page 2

Datasheet Details

Part number
DF08, DF005
Manufacturer
Vishay ↗
File Size
31.08 KB
Datasheet
DF005-Vishay.pdf
Description
1.0A BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DF08, DF005.
Please refer to the document for exact specifications by model.
