DG304A Datasheet - Vishay

DG304A CMOS Analog Switches

The DG304A through DG307A series of monolithic CMOS switches were designed for applications in communications, instrumentation and process control. This series is well suited for applications requiring fast switching and nearly flat on-resistance over the entire analog range. applications, without .

DG304A Features

* D "15-V Input Range D Fast Switching

* tON: 110 ns D Low rDS(on): 30 W D Single Supply Operation D CMOS Logic Levels D Micropower: 30 nW BENEFITS APPLICATIONS D Full Rail-to-Rail Analog Signal Range D Low Signal Error D Wide Dynamic Range D Low Power Dissipation D Low Level Switching Circu

DG304A Datasheet (91.48 KB)

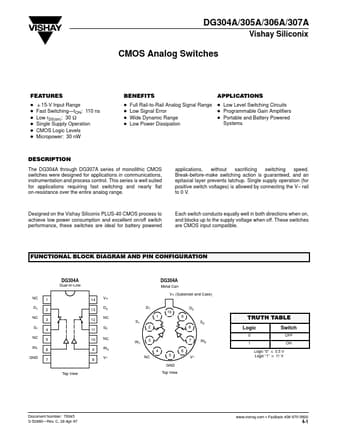

Preview of DG304A PDF
DG304A Datasheet Preview Page 2 DG304A Datasheet Preview Page 3

Datasheet Details

Part number:

DG304A

Manufacturer:

Vishay ↗

File Size:

91.48 KB

Description:

Cmos analog switches.
