DG408 8-Ch High-Performance CMOS Analog Multiplexers

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com DG408, DG409 Vishay Siliconix 8-Ch/Dual 4-Ch High-Performance CMOS Analog Multiplexers .
The DG408 is an 8 channel single-ended analog multiplexer designed to connect one of eight inputs to a common output as determined by a 3-bit binary a.

📥 Download Datasheet

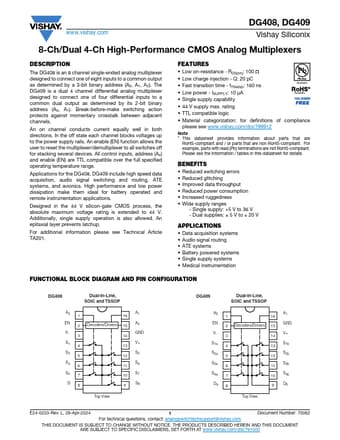

Preview of DG408 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DG408
Manufacturer
Vishay ↗
File Size
288.86 KB
Datasheet
DG408-Vishay.pdf
Description
8-Ch High-Performance CMOS Analog Multiplexers

Features

* Low on-resistance - RDS(on): 100 
* Low charge injection - Q: 20 pC
* Fast transition time - tTRANS: 160 ns
* Low power - ISUPPLY: 10 μA
* Single supply capability Available Available
* 44 V supply max. rating
* TTL compatible logic

Applications

* for the DG408, DG409 include high speed data acquisition, audio signal switching and routing, ATE systems, and avionics. High performance and low power dissipation make them ideal for battery operated and remote instrumentation applications. Designed in the 44 V silicon-gate CMOS process, the absolu
