EYD - Aluminum Capacitors

Product Overview

Vishay

Datasheet Details

Part number	EYD
Manufacturer	Vishay
File Size	164.14 KB
Description	Aluminum Capacitors
Datasheet	EYD Datasheet

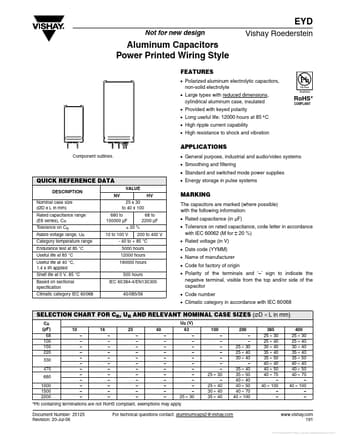

Additional preview pages of the EYD datasheet.

Product details

Description

Nominal case size (ØD x L in mm) Rated capacitance range (E6 series), CR Tolerance on CR Rated voltage range, UR Category temperature range Endurance test at 85 °C Useful life at 85 °C Useful life at 40 °C, 1.4 x IR applied Shelf life at 0 V, 85 °C Based on sectional specification Climatic category IEC 60068 VALUE NV 25 x 30 to 40 x 100 680 to 150000 µF ± 20 % 10 to 100 V 200 to 400 V - 40 to + 85 °C 5000 hours 12000 hours 190000 hours 500 hours IEC 60384-4/EN130300 40/085/56 68 to 2200 µF HV

Features

Polarized aluminum electrolytic capacitors, non-solid electrolyte.
Large types with reduced dimensions, cylindrical aluminum case, insulated.
Provided with keyed polarity.
Long useful life: 12000 hours at 85 °C.
High ripple current capability.
High resistance to shock and vibration Pb-free Available RoHS.
