GBPC1510, GBPC12005 Datasheet - Vishay

GBPC1510 Glass Passivated Single-Phase Bridge Rectifier

GBPC1510 Features

* UL recognition file number E54214

* Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting

* Typical IR less than 0.3 μA

* High surge current capability

* Low thermal resistance

* Solder dip 275 °C max. 10 s, per JESD 22-B106

GBPC12005-Vishay.pdf

This datasheet PDF includes multiple part numbers: GBPC1510, GBPC12005. Please refer to the document for exact specifications by model.

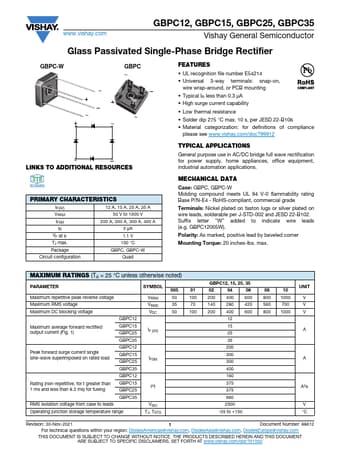

GBPC1510 Datasheet Preview Page 2 GBPC1510 Datasheet Preview Page 3

Datasheet Details

Part number:

GBPC1510, GBPC12005

Manufacturer:

Vishay ↗

File Size:

91.52 KB

Description:

Glass passivated single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: GBPC1510, GBPC12005.
Please refer to the document for exact specifications by model.
