* UL recognition file number E54214
* Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting
* Typical IR less than 0.3 μA
* High surge current capability
* Low thermal resistance
* Solder dip 275 °C max. 10 s, per JESD 22-B106
GBPC3510
91.52 KB

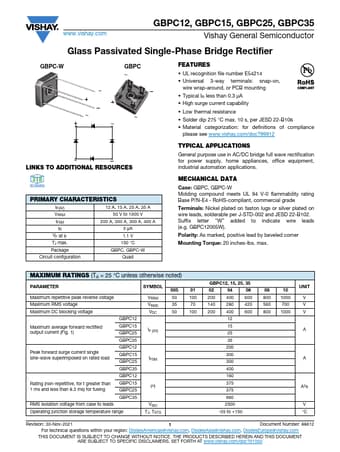

Glass passivated single-phase bridge rectifier.
www.vishay.com
GBPC12, GBPC15, GBPC25, GBPC35
Vishay General Semiconductor
Glass Passivated Single-Phase Bridge Rectifier
GBPC-W
GBPC
~
~
~
~
~.
