GL34G, GL34A, Surface Mount Glass Passivated Junction Rectifier

www.vishay.com GL34A, GL34B, GL34D, GL34G, GL34J Vishay General Semiconductor Surface Mount Glass Passivated Junction Rectifier SUPERECTIFIER® DO-.

GL34A-Vishay.pdf

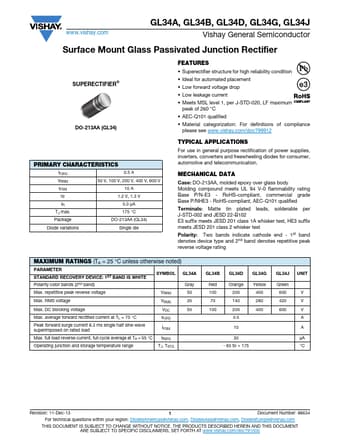

GL34G Datasheet Preview — This datasheet PDF includes multiple part numbers: GL34G, GL34A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GL34G, GL34A

Manufacturer:

Vishay ↗

File Size:

77.16 KB

Description:

Surface Mount Glass Passivated Junction Rectifier

Note:

This datasheet PDF includes multiple part numbers: GL34G, GL34A.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified
* Material categorizati

Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. MECHANICAL DATA Case: DO-213AA, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E
