GP10-4007 - Glass Passivated Junction Plastic Rectifier

This page provides the datasheet information for the GP10-4007, a member of the GP10-4002 Glass Passivated Junction Plastic Rectifier family.

Datasheet Summary

Features

  • Superectifier structure for high reliability.

📥 Download Datasheet

Datasheet preview – GP10-4007

Datasheet Details

Part number GP10-4007
Manufacturer Vishay
File Size 75.00 KB
Description Glass Passivated Junction Plastic Rectifier
Datasheet download datasheet GP10-4007 Datasheet
Additional preview pages of the GP10-4007 datasheet.

📁 Similar Datasheet

  • GP10 - Paperless Recorder (Yokogawa)
  • GP100 - 1 AMP HIGH RELIABILITY SILICON DIODES (DIOTEC Electronics Corporation)
  • GP100 - PPTC Thermistors (Goodpoly)
  • GP1001 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1002 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1003 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1004 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1005 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1006 - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • GP1007 - Glass Passivated Rectifiers (Taiwan Semiconductor)
Other Datasheets by Vishay
  • GP10-4002 - Glass Passivated Junction Plastic Rectifier
  • GP10-4003 - Glass Passivated Junction Plastic Rectifier
  • GP10-4004 - Glass Passivated Junction Plastic Rectifier
  • GP10-4005 - Glass Passivated Junction Plastic Rectifier
  • GP10-4006 - Glass Passivated Junction Plastic Rectifier
  • GP15A - Glass Passivated Junction Rectifier
  • GP15B - Glass Passivated Junction Rectifier
  • GP15D - Glass Passivated Junction Rectifier

Full PDF Text Transcription

Click to expand full text

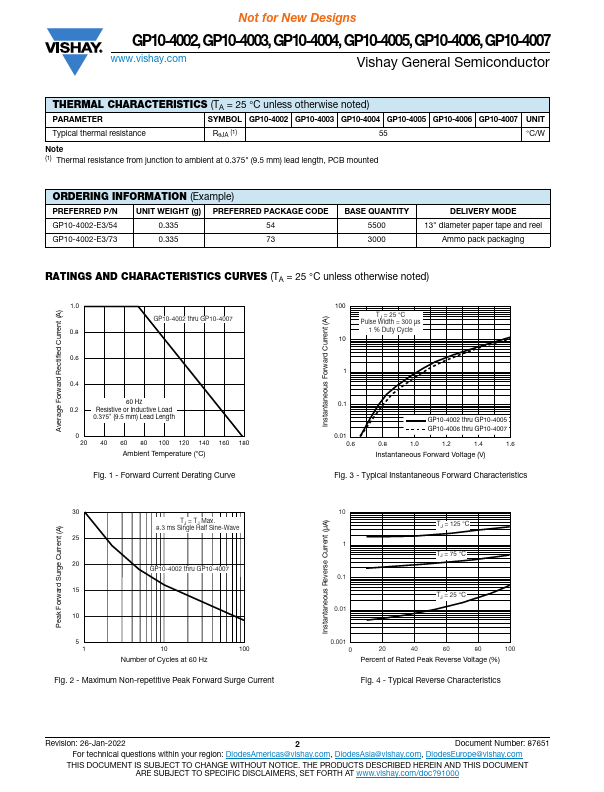

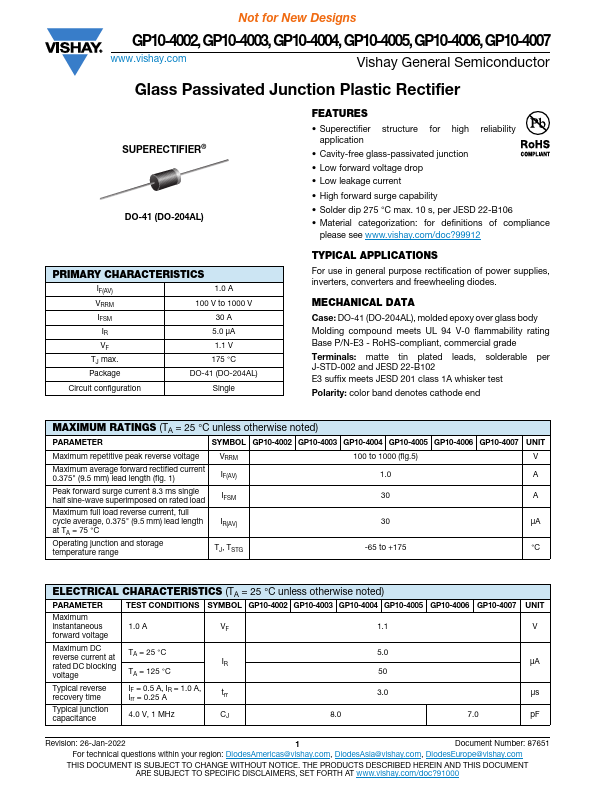

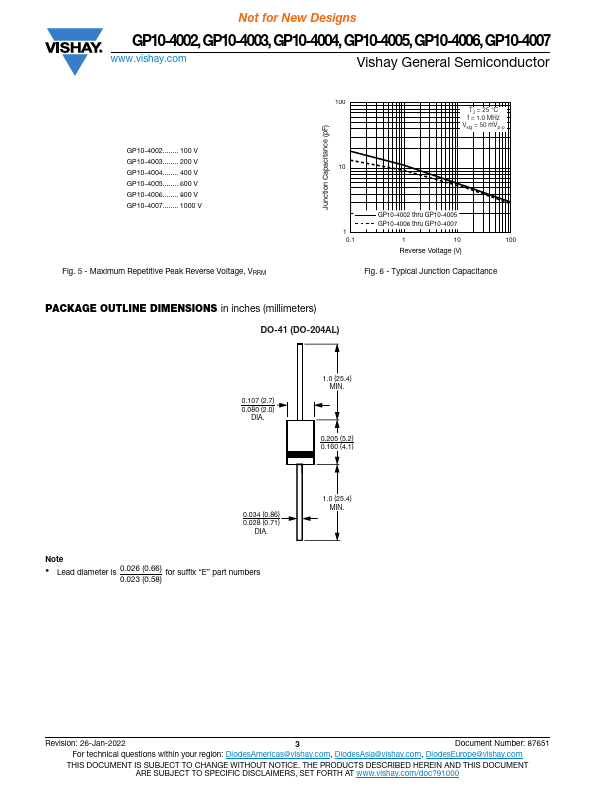

Not for New Designs GP10-4002, GP10-4003, GP10-4004, GP10-4005, GP10-4006, GP10-4007 www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier SUPERECTIFIER® DO-41 (DO-204AL) PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 100 V to 1000 V IFSM 30 A IR 5.0 μA VF 1.1 V TJ max. 175 °C Package DO-41 (DO-204AL) Circuit configuration Single FEATURES • Superectifier structure for high reliability application • Cavity-free glass-passivated junction • Low forward voltage drop • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.
