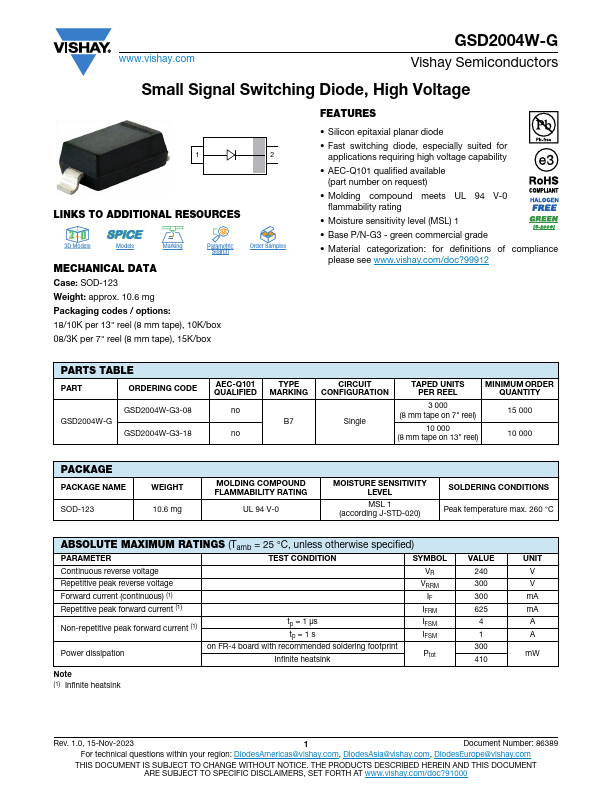

GSD2004W-G
FEATURES
- Silicon epitaxial planar diode
- Fast switching diode, especially suited for applications requiring high voltage capability
- AEC-Q101 qualified available
(part number on request)
- Molding pound meets UL 94 V-0 flammability rating
- Moisture sensitivity level (MSL) 1
- Base P/N-G3
- green mercial grade
- Material categorization: for definitions of pliance please see .vishay./doc?99912
PARTS TABLE
PART
ORDERING CODE
GSD2004W-G3-08 GSD2004W-G3-18
AEC-Q101 QUALIFIED no no
TYPE MARKING
B7
CIRCUIT CONFIGURATION
Single
TAPED UNITS PER REEL
3 000 (8 mm tape on 7" reel)
10 000 (8 mm tape on 13" reel)
MINIMUM ORDER QUANTITY 15 000
10 000
PACKAGE
PACKAGE NAME SOD-123
WEIGHT 10.6 mg
MOLDING POUND FLAMMABILITY RATING
UL 94 V-0
MOISTURE SENSITIVITY LEVEL
MSL 1 (according J-STD-020)
SOLDERING CONDITIONS Peak temperature max. 260 °C
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
Continuous reverse...
