ICTE5 Datasheet (Vishay) - Transient Voltage Suppressors

ICTE5, Transient Voltage Suppressors

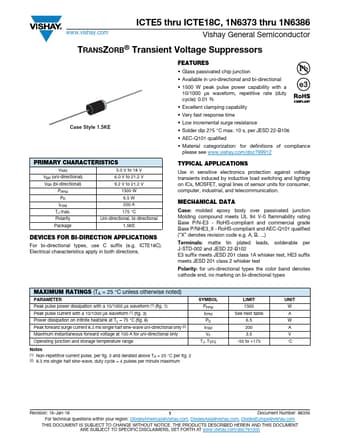

www.vishay.com ICTE5 thru ICTE18C, 1N6373 thru 1N6386 Vishay General Semiconductor TRANSZORB® Transient Voltage Suppressors Case Style 1.5KE PRIMARY CHARACTERISTICS VWM 5.0 V to 18 V VBR (uni-directional) 6.0 V to 21.2 V VBR (bi-directional) 9.2 V to 21.2 V PPPM 1500 W PD 6.5 W IFSM 200 A TJ max.

175 °C Polarity Uni-directional, bi-directional Package 1.5KE DEVICES FOR BI-DIRECTION APPLICATIONS For bi-directional types, use C suffix (e.g.

ICTE18C).

Electrical characteristic

ICTE5 Features

* Glass passivated chip junction

* Available in uni-directional and bi-directional

* 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %

* Excellent clamping capability

* Very fast response time

* Low inc
