IHD3EB391L Datasheet - Vishay

IHD3EB391L Filter Inductors

IHD Vishay Dale Filter Inductors, High Current, Axial Leaded ELECTRICAL SPECIFICATIONS Inductance: Measured at 1.0 V with zero DC current Incremental Current: The typical current at which the inductance will be decreased by 5 % from its initial zero DC value Dielectric Rating: 2500 VRMS between winding and outer circumference to within 0.250" [6.35 mm] of the insulating sleeve edge Operating Temperature: - 55 °C to + 125 °C (no load), - 55 °C to + 85 °C (at full rated current) Current Rating: M.

IHD3EB391L Features

* Printed circuit mounting (axial leads)

* Protected by polyolefin tubing

* High saturation bobbin used allowing high inductance with low DC resistance

* Pre-tinned leads

* High resistivity core offers very high parallel resistance, resulting in maximum coil p

IHD3EB391L Datasheet (242.19 KB)

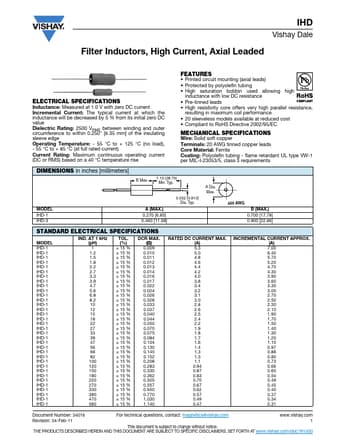

Preview of IHD3EB391L PDF
IHD3EB391L Datasheet Preview Page 2 IHD3EB391L Datasheet Preview Page 3

Datasheet Details

Part number:

IHD3EB391L

Manufacturer:

Vishay ↗

File Size:

242.19 KB

Description:

Filter inductors.
