Datasheet Details
- Part number
- IHHP-0603ZH-01
- Manufacturer
- Vishay ↗
- File Size
- 186.23 KB
- Datasheet
- IHHP-0603ZH-01-Vishay.pdf
- Description
- High Current Inductors
IHHP-0603ZH-01 Description

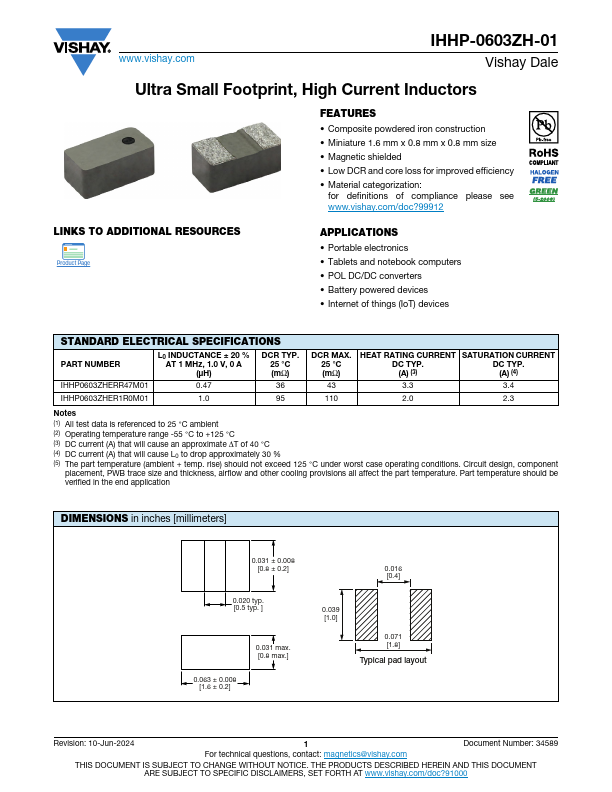

www.vishay.com IHHP-0603ZH-01 Vishay Dale Ultra Small Footprint, High Current Inductors .
IHHP-0603ZH-01
1.
IHHP-0603ZH-01 Features
* Composite powdered iron construction
* Miniature 1.6 mm x 0.8 mm x 0.8 mm size
* Magnetic shielded
* Low DCR and core loss for improved efficiency
* Material categorization:
for definitions of compliance please see www. vishay. com/doc?99912
LINKS TO ADDITION
IHHP-0603ZH-01 Applications
* Portable electronics
* Tablets and notebook computers
* POL DC/DC converters
* Battery powered devices
* Internet of things (IoT) devices
STANDARD ELECTRICAL SPECIFICATIONS
PART NUMBER
L0 INDUCTANCE ± 20 % AT 1 MHz, 1.0 V, 0 A
(μH)
DCR TYP. 25 °C (mΩ)
I
