IHLP-1212AB-11 Commercial Inductor

IHLP-1212AB-11 0.22 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 1 2 1 2 ABERR2 2M1 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/patents This Vishay product.

www.vishay.com IHLP-1212AB-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series DESIGN SUPPORT TOOLS click logo to get started Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (m) (m) (A) (1) (A) (2) (MHz) 0.22 9.5 11.4 9.3 9.3 220 0.33 12.0 14.3 7.2 8.7 175 0.47 16.3 19.5 6.4 7.0 140 0.56 18.7 22.0 5.1 6.7 1.

IHLP-1212AB-11 Features

* Shielded construction

* Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

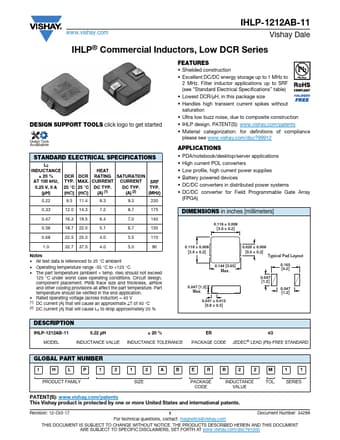

IHLP-1212AB-11 Datasheet (285.26 KB)
