IHLP-1212AZ-51 Datasheet - Vishay

IHLP-1212AZ-51 Commercial Inductors

IHLP-1212AZ-51 0.47 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EV e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 1 2 1 2 AZEVR4 7M5 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE PATENT(S): www.vishay.com/patents This Vishay product is protected.

www.vishay.com IHLP-1212AZ-51 Vishay Dale IHLP® Commercial Inductors, High Temperature (155 °C) Series ADDITIONAL RESOURCES 3D 3D 3D Models Calculators STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (m) (m) (A) (1) (A) (2) (MHz) 0.10 7.31 8.81 11.13 7.38 440 0.22 13.89 14.87 7.72 5.88 225 0.33 0.47 21.07 23.30 26.66 27.92 5.85 5.35 5.05 187.

IHLP-1212AZ-51 Features

* Shielded construction

* High temperature, up to 155 °C

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* Excellent DC/DC energy storage up to 5 MHz

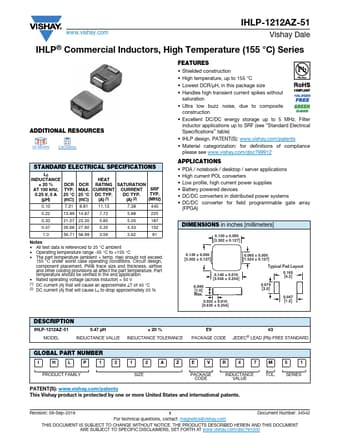

IHLP-1212AZ-51 Datasheet (317.29 KB)
