IHLP-1212BZ-11 High Current IHLP Inductors

IHLP-1212BZ-11 0.22 μH ± 20 % ER e3 MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 1 2 1 2 BZERR2 2M1 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/patents This Vishay produc.

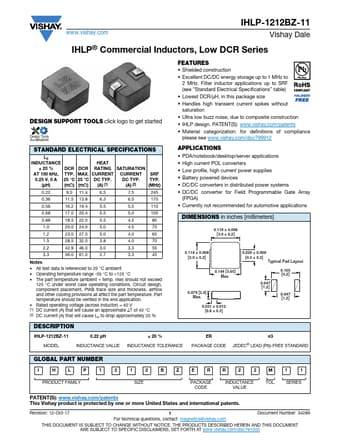

www.vishay.com IHLP-1212BZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series DESIGN SUPPORT TOOLS click logo to get started Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (m) (m) (A) (1) (A) (2) (MHz) 0.22 9.5 11.4 6.5 7.5 245 0.36 0.56 11.5 13.8 16.2 19.4 6.3 5.5 6.5 170 5.5 110 0.68 17.0 20.4 5.5 5.0 105 .

IHLP-1212BZ-11 Features

* Shielded construction

* Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

IHLP-1212BZ-11 Datasheet (208.34 KB)
