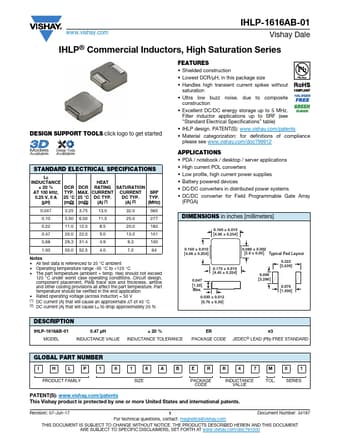

IHLP-1616AB-01
.vishay.
Vishay Dale
IHLP® mercial Inductors, High Saturation Series
DESIGN SUPPORT TOOLS click logo to get started
Models
Available
Design Tools Available
STANDARD ELECTRICAL SPECIFICATIONS
L0 INDUCTANCE
HEAT
± 20 % DCR DCR RATING SATURATION
AT 100 k Hz, TYP. MAX. CURRENT CURRENT SRF
0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP.
(μH)
(mΩ) (mΩ) (A) (1)
(A) (2)
(MHz)
0.047 0.10 0.22 0.47
3.25 5.50 11.0 20.0
3.75 6.00 12.0 22.0
13.0 11.5 8.5 5.0
32.0 25.0 20.0 13.0
565 277 183 101
0.68 1.00
29.3 31.4 50.0 52.5
4.9 4.0
9.3 100 7.0 64
Notes
- All test data is referenced to 25 °C ambient
- Operating temperature range -55 °C to +125 °C
- The part temperature (ambient + temp. rise) should not exceed 125 °C under worst case operating conditions. Circuit design, ponent placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end...
