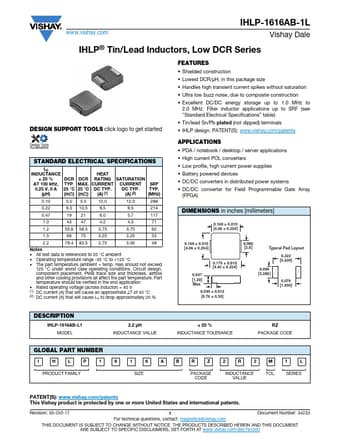

IHLP-1616AB-1L
FEATURES
- Shielded construction
- Lowest DCR/μH, in this package size
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to posite construction
- Excellent DC/DC energy storage up to 1.0 MHz to
2.0 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)
- Tin/lead Sn/Pb plated (not dipped) terminals
- IHLP design. PATENT(S): .vishay./patents
Design Tools Available
STANDARD ELECTRICAL SPECIFICATIONS
L0
INDUCTANCE
HEAT
± 20 % DCR DCR RATING SATURATION
AT 100 k Hz, TYP. MAX. CURRENT CURRENT SRF
0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP.
(μH)
(m) (m) (A) (1)
(A) (2)
(MHz)
5.0 5.5
12.0 288
9.5 10.5
9.5 214
19 21
5.7 117
43 47
4.5 71
1.2 55.6 58.5 3.75
3.75...
