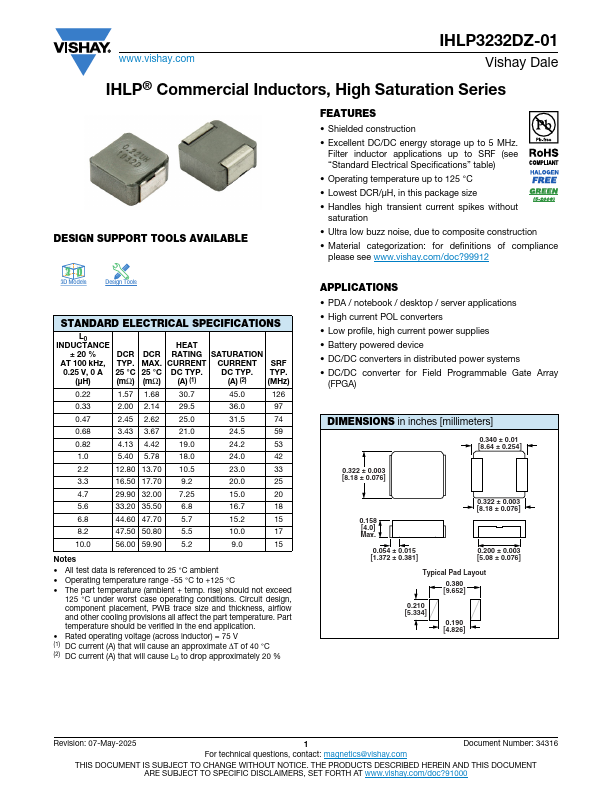

IHLP3232DZ-01
FEATURES
- Shielded construction
- Excellent DC/DC energy storage up to 5 MHz.
Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)
- Operating temperature up to 125 °C
- Lowest DCR/μH, in this package size
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to posite construction
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- PDA / notebook / desktop / server applications
- High current POL converters
- Low profile, high current power supplies
- Battery powered device
- DC/DC converters in distributed power systems
- DC/DC converter for Field Programmable Gate Array
(FPGA)
DIMENSIONS in inches [millimeters]
0.340 ± 0.01 [8.64 ± 0.254]
0.322 ± 0.003 [8.18 ± 0.076]
0.158 [4.0] Max.
0.322 ± 0.003 [8.18 ± 0.076]
0.054 ± 0.015 [1.372 ± 0.381]
0.200 ± 0.003 [5.08 ± 0.076]
Typical Pad Layout
0.380 [9.652]
0.210 [5.334]
0.190 [4.826]
Revision: 07-May-2025
