IHLP3232DZ-11 Commercial Inductors

Vishay

Description

www.vishay.com IHLP3232DZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools F.
IHLP3232DZ-11 MODEL 33 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I.

📥 Download Datasheet

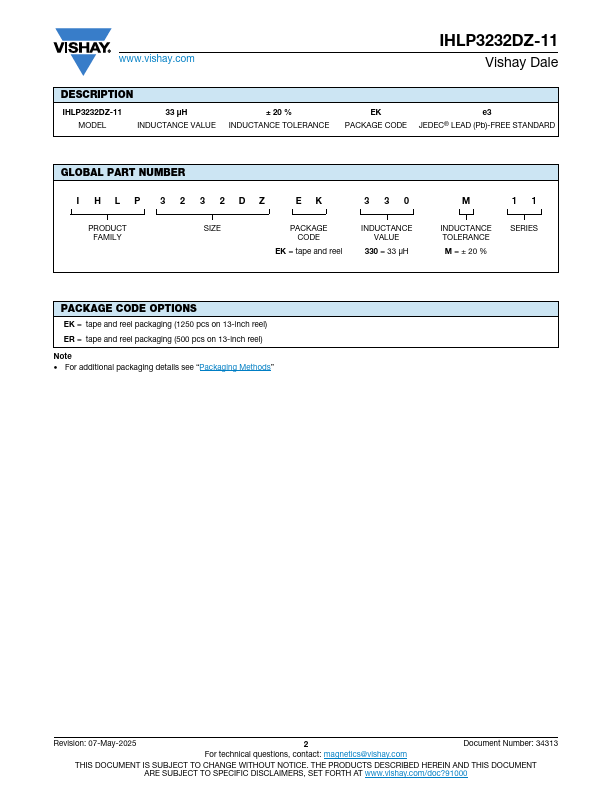

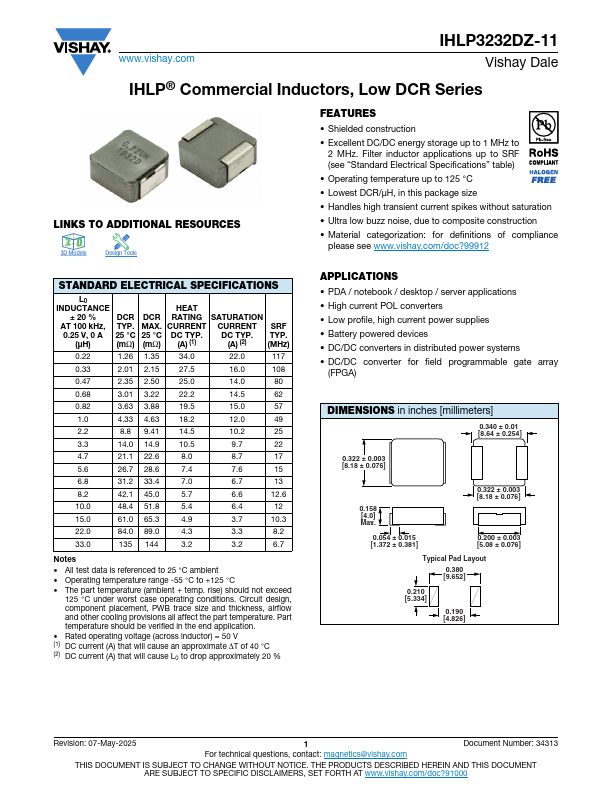

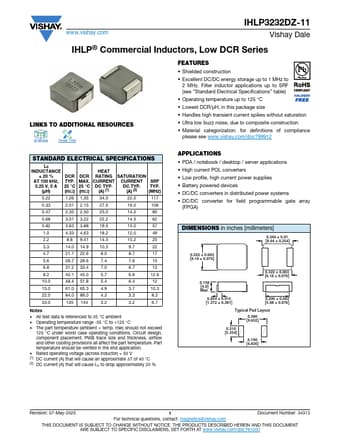

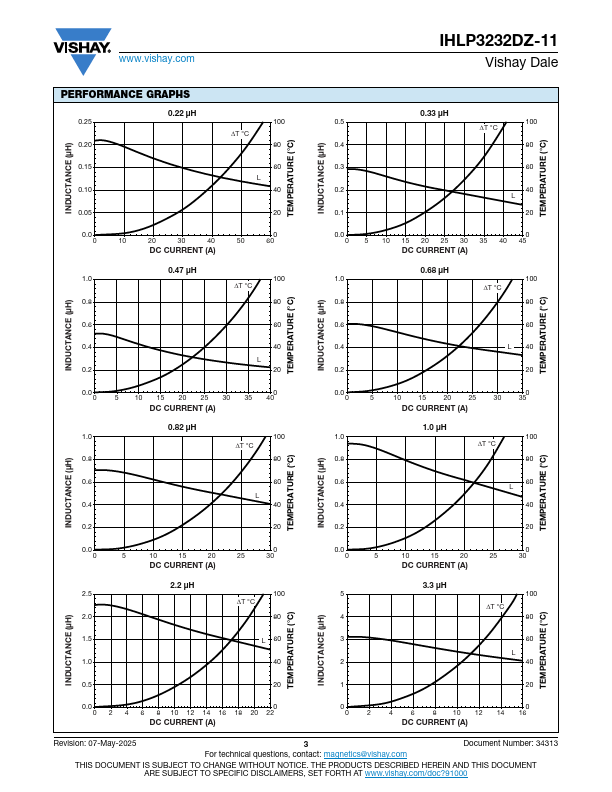

IHLP3232DZ-11 Datasheet Preview — Preview of IHLP3232DZ-11 PDF

Datasheet Specifications

Part number: IHLP3232DZ-11
Manufacturer: Vishay ↗
File Size: 335.88 KB
Datasheet: IHLP3232DZ-11-Vishay.pdf
Description: Commercial Inductors

Features

* Shielded construction

Applications

* up to SRF (see “Standard Electrical Specifications” table)
* Operating temperature up to 125 °C
* Lowest DCR/μH, in this package size
* Handles high transient current spikes without saturation
* Ultra low buzz noise, due to composite construction
* Material ca
