IHPT1710ACEL1R2AB0, IHPT1207AGELR39AB0, Haptic Feedback Actuator

www.vishay.com IHPT Vishay Custom Magnetics IHPT™ Haptic Feedback Actuator With Immersion License .
IHPT-1411AF MODEL R73 FORCE COEFFICIENT TRAY PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD MATERIAL Core Wire Solder Laminated steel Copper, PU/.

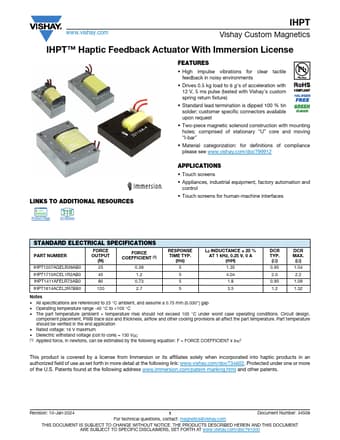

datasheet Preview Page 1 from Datasheet4u.com

IHPT1207AGELR39AB0-Vishay.pdf

IHPT1710ACEL1R2AB0 Datasheet Preview — This datasheet PDF includes multiple part numbers: IHPT1710ACEL1R2AB0, IHPT1207AGELR39AB0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IHPT1710ACEL1R2AB0, IHPT1207AGELR39AB0

Manufacturer:

Vishay ↗

File Size:

185.64 KB

Description:

Haptic Feedback Actuator

Note:

This datasheet PDF includes multiple part numbers: IHPT1710ACEL1R2AB0, IHPT1207AGELR39AB0.
Please refer to the document for exact specifications by model.

Features

* High impulse vibrations for clear tactile feedback in noisy environments
* Drives 0.5 kg load to 6 g’s of acceleration with 12 V, 5 ms pulse (tested with Vishay’s custom spring return fixture)
* Standard lead termination is dipped 100 % tin solder; customer specific connect

Applications

* Touch screens
* Appliances, industrial equipment, factory automation and control
* Touch screens for human-machine interfaces STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER FORCE OUTPUT (N) FORCE COEFFICIENT (1) IHPT1207AGELR39AB0 25 0.39 IHPT1710ACEL1R2AB0 45 1.2
