IHSR-1616AB-01 Commercial Inductors

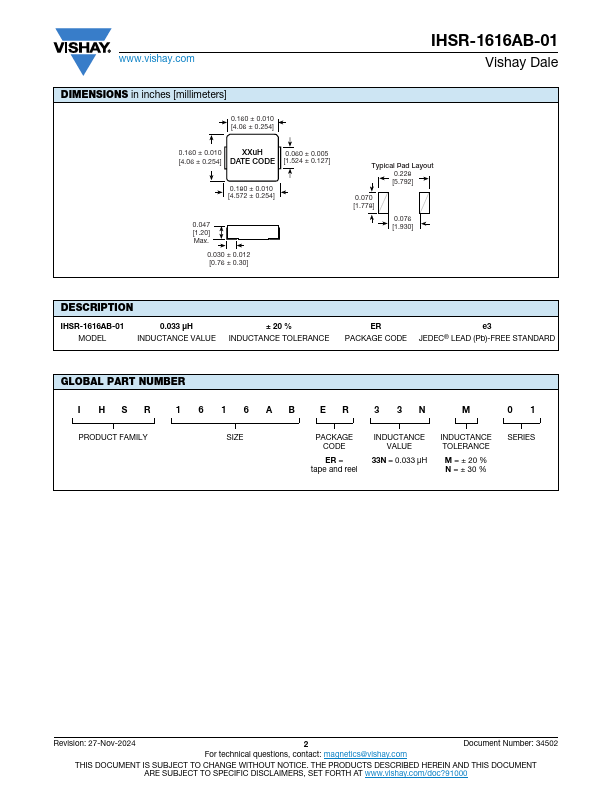

IHSR-1616AB-01 0.033 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H S R 1 6 1 6 A B E R 3 3 NM0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES Revision: 06-Dec-2018 1 Document Number: 34502.

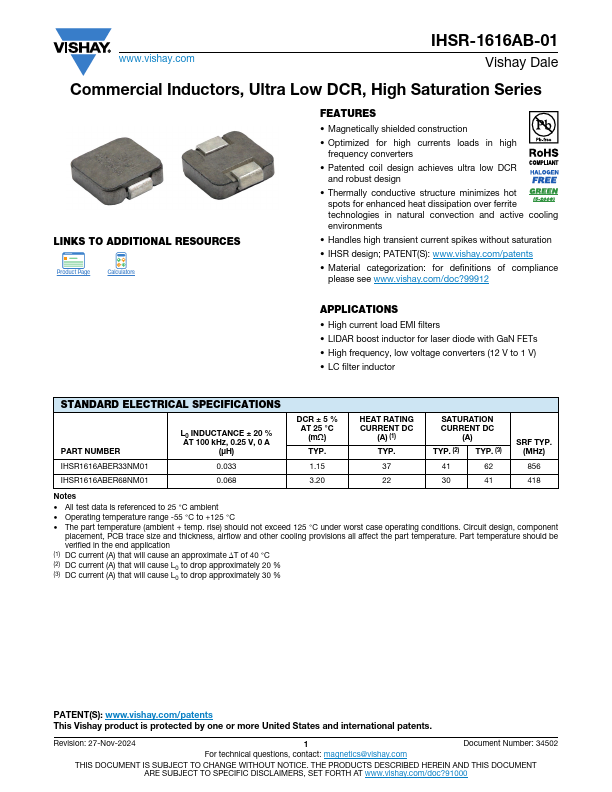

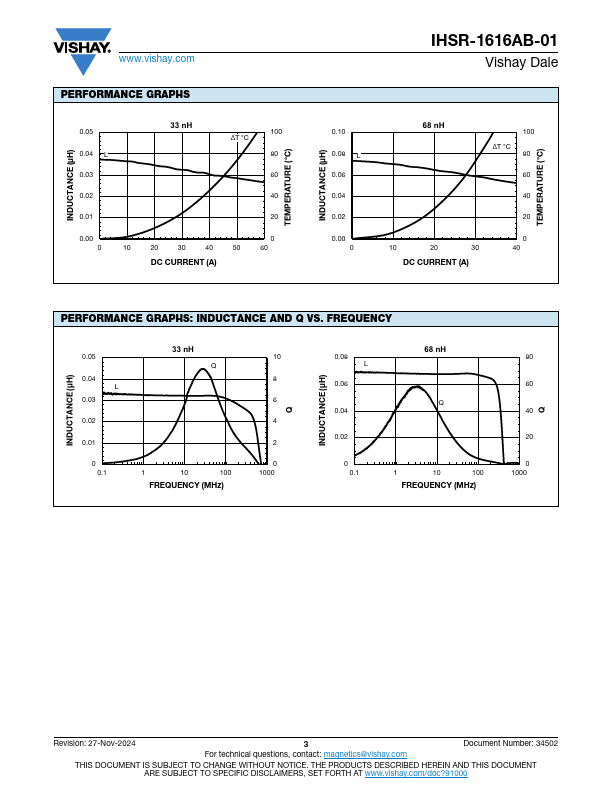

www.vishay.com IHSR-1616AB-01 Vishay Dale Commercial Inductors, Ultra Low DCR, High Saturation Series DESIGN SUPPORT TOOLS click logo to get started Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE ± 20 % AT 100 kHz, 0.25 V, 0 A (μH) DCR ±5% AT 25 °C (m) TYP. HEAT RATING CURRENT DC (A) (1) TYP. SATURATION CURRENT DC (A) TYP. (2) TYP. (3) SRF TYP. (MHz) 0.033 1.15 37 41 62 856 0.068 3.20 22 30 41 418 Notes All test data is referenced to 25 °C ambie.

IHSR-1616AB-01 Features

* Lowest DCR/μH, in this package size

* Shielded construction

* Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table)

* Handles high transient current spikes without saturation

* Ult
