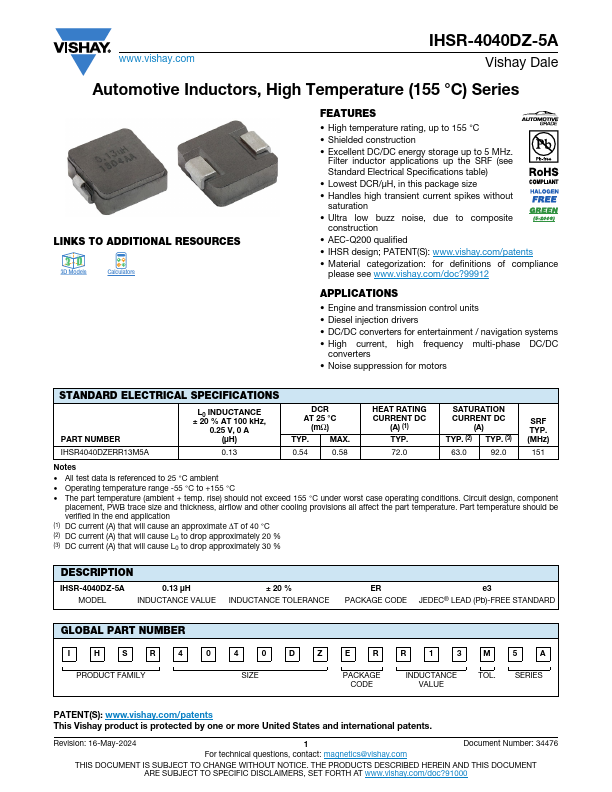

IHSR-4040DZ-5A
FEATURES
- High temperature rating, up to 155 °C
- Shielded construction
- Excellent DC/DC energy storage up to 5 MHz.
Filter inductor applications up the SRF (see Standard Electrical Specifications table)
- Lowest DCR/μH, in this package size
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to posite construction
- AEC-Q200 qualified
- IHSR design; PATENT(S): .vishay./patents
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- Engine and transmission control units
- Diesel injection drivers
- DC/DC converters for entertainment / navigation systems
- High current, high frequency multi-phase DC/DC converters
- Noise suppression for motors
STANDARD ELECTRICAL SPECIFICATIONS
PART NUMBER IHSR4040DZERR13M5A
L0 INDUCTANCE ± 20 % AT 100 k Hz,
0.25 V, 0 A (μH)
DCR AT 25 °C
(mΩ)
TYP.
MAX.
HEAT RATING CURRENT DC
(A) (1)
TYP.
SATURATION CURRENT DC
(A)
TYP. (2) TYP....
