IHTH-1125KZ-5A - Automotive High Current Through-Hole Power Inductor

Vishay

📥 Download Datasheet

IHTH-1125KZ-5A Datasheet Preview — Preview of IHTH-1125KZ-5A PDF

Datasheet Details

Part number	IHTH-1125KZ-5A
Manufacturer	Vishay
File Size	476.99 KB
Description	Automotive High Current Through-Hole Power Inductor
Datasheet	IHTH-1125KZ-5A-Vishay.pdf

IHTH-1125KZ-5A Product details

Description

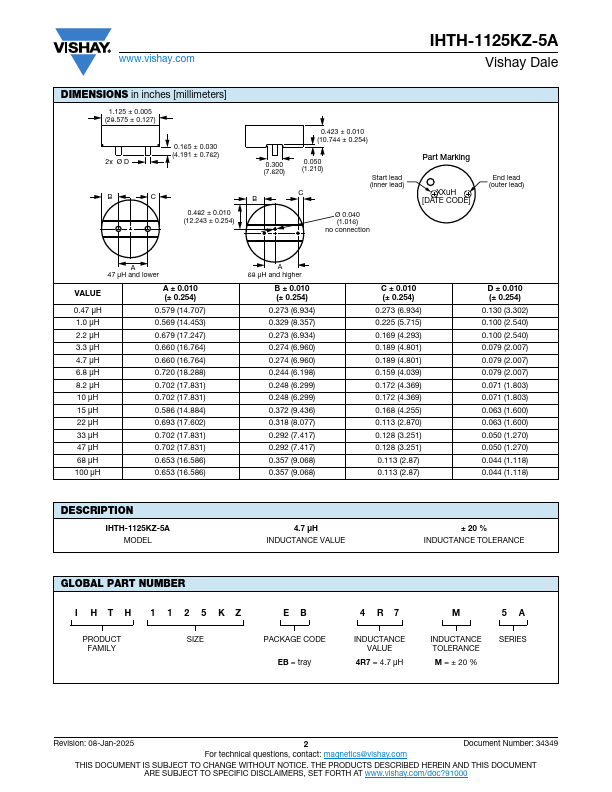

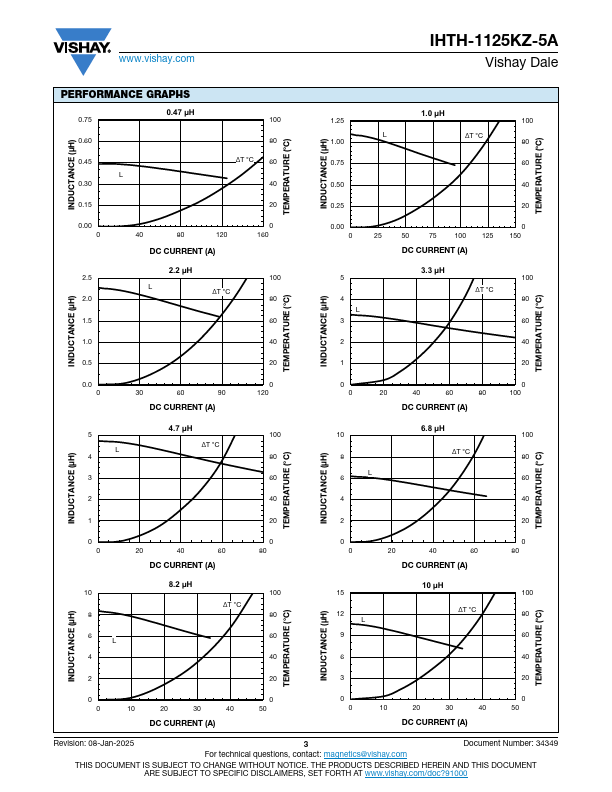

IHTH-1125KZ-5A MODEL 4.7 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE GLOBAL PART NUMBER I HT H 1 1 2 5 KZ EB PRODUCT FAMILY SIZE PACKAGE CODE EB = tray 4 R7 INDUCTANCE VALUE 4R7 = 4.7 μH M 5A INDUCTANCE TOLERANCE M = ± 20 % SERIES Revision: 08-Jan-2025 2 Document Number: 34349 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH

Features

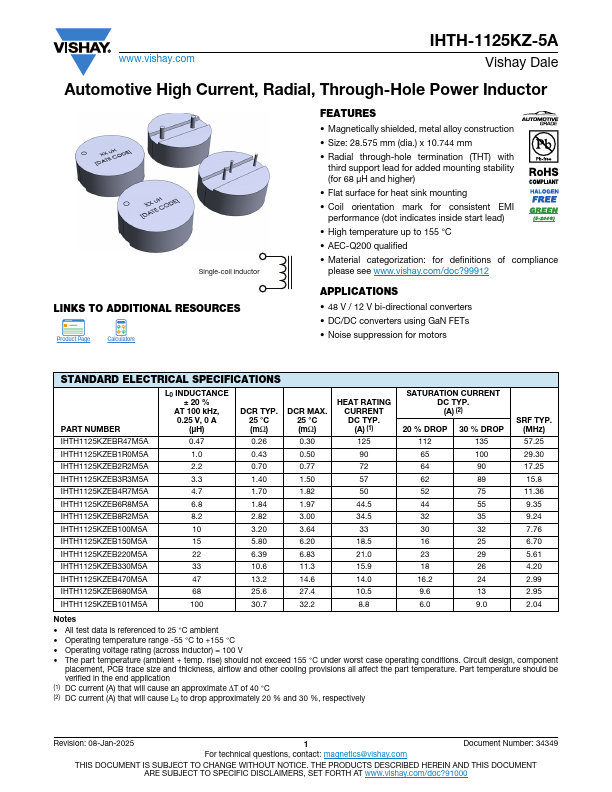

Magnetically shielded, metal alloy construction.
Size: 28.575 mm (dia. ) x 10.744 mm.
Radial through-hole termination (THT) with third support lead for added mounting stability (for 68 μH and higher).
Flat surface for heat sink mounting.
Coil orientation mark for consistent EMI performance (dot indicates inside start lead).
High temperature up to 155 °C.
AEC-Q200 qualified.
Material categorization: for definitions of complia.
