IHTL3825JEEZR22L, IHTL3825JEEZR10L, High Current Power Inductors

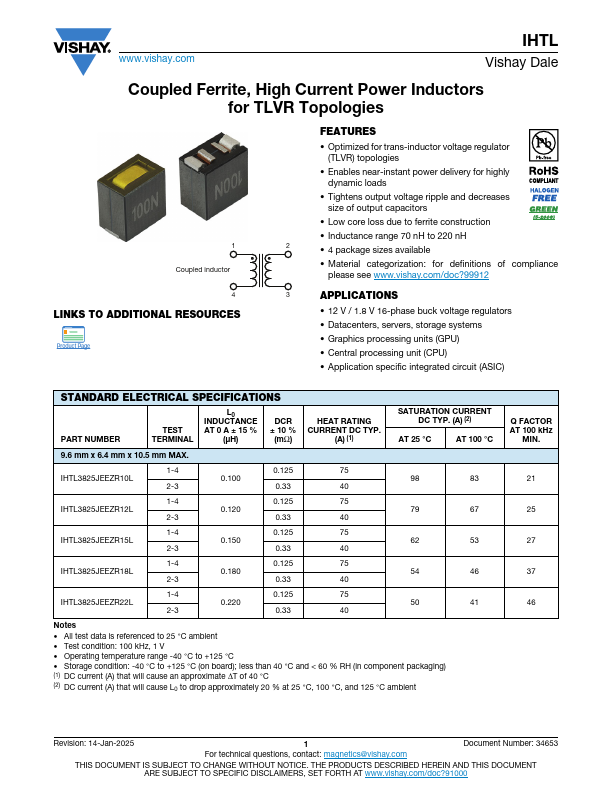

www.vishay.com IHTL Vishay Dale Coupled Ferrite, High Current Power Inductors for TLVR Topologies 1 Coupled inductor 4 LINKS TO ADDITIONAL RESOURCE.

IHTL3825JEEZR10L-Vishay.pdf

IHTL3825JEEZR22L Datasheet Preview — This datasheet PDF includes multiple part numbers: IHTL3825JEEZR22L, IHTL3825JEEZR10L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IHTL3825JEEZR22L, IHTL3825JEEZR10L

Manufacturer:

Vishay ↗

File Size:

92.48 KB

Description:

High Current Power Inductors

Note:

This datasheet PDF includes multiple part numbers: IHTL3825JEEZR22L, IHTL3825JEEZR10L.
Please refer to the document for exact specifications by model.

Features

* Optimized for trans-inductor voltage regulator (TLVR) topologies
* Enables near-instant power delivery for highly dynamic loads
* Tightens output voltage ripple and decreases size of output capacitors
* Low core loss due to ferrite construction
* Induct

Applications

* 12 V / 1.8 V 16-phase buck voltage regulators
* Datacenters, servers, storage systems
* Graphics processing units (GPU)
* Central processing unit (CPU)
* Application specific integrated circuit (ASIC) STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER TE
