IHXL-1500VZ-5A - High Current Through-Hole Inductor

Vishay

The IHXL-1500VZ-5A by Vishay is a High Current Through-Hole Inductor. Below is the official datasheet preview.

📥 Download Datasheet

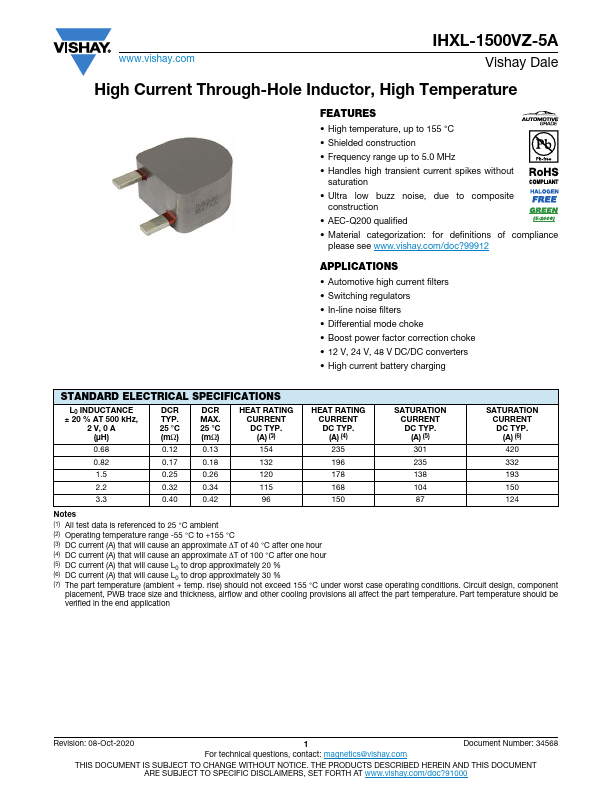

IHXL-1500VZ-5A High Current Through-Hole Inductor by Vishay - Datasheet Preview — Official preview page of the **IHXL-1500VZ-5A** High Current Through-Hole Inductor datasheet (Vishay).

Datasheet Details

Part number	IHXL-1500VZ-5A
Manufacturer	Vishay
File Size	288.87 KB
Description	High Current Through-Hole Inductor
Datasheet	IHXL-1500VZ-5A-Vishay.pdf

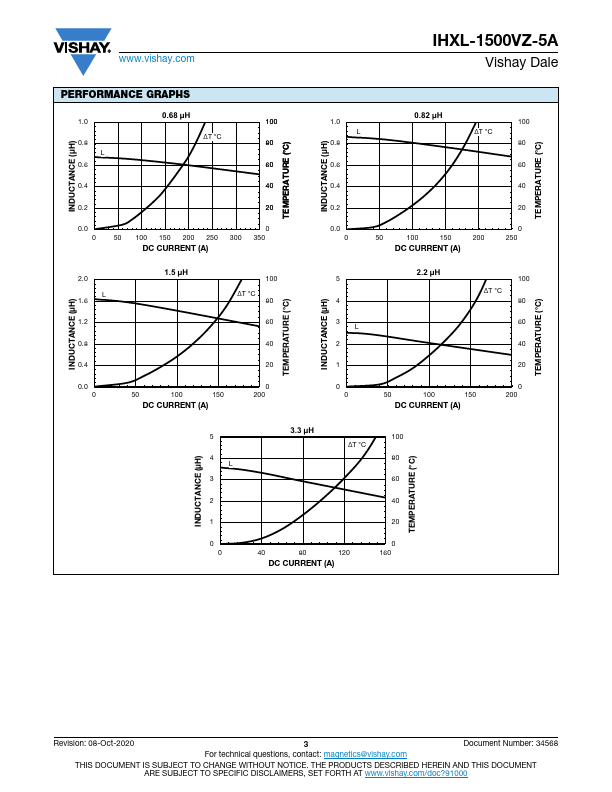

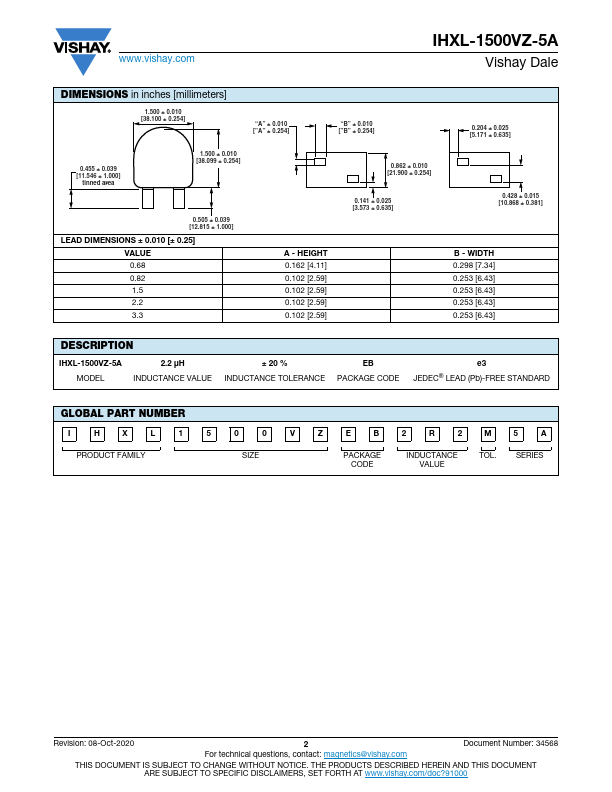

Additional preview pages of the IHXL-1500VZ-5A datasheet.

IHXL-1500VZ-5A Product details

Description

IHXL-1500VZ-5A 2.2 μH MODEL INDUCTANCE VALUE ± 20 % EB INDUCTANCE TOLERANCE PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H X L 1 5 0 0 V Z E B 2 R 2 M 5 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.SERIES Revision: 08-Oct-2020 2 Document Number: 34568 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFI

Features

High temperature, up to 155 °C.
Shielded construction.
Frequency range up to 5.0 MHz.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
AEC-Q200 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
