ILSB-1206 - Monolithic Chip Inductors

Vishay

📥 Download Datasheet

ILSB-1206 Datasheet Preview — Preview of ILSB-1206 PDF

Datasheet Details

Part number	ILSB-1206
Manufacturer	Vishay
File Size	83.68 KB
Description	Monolithic Chip Inductors
Datasheet	ILSB-1206-Vishay.pdf

ILSB-1206 Product details

Description

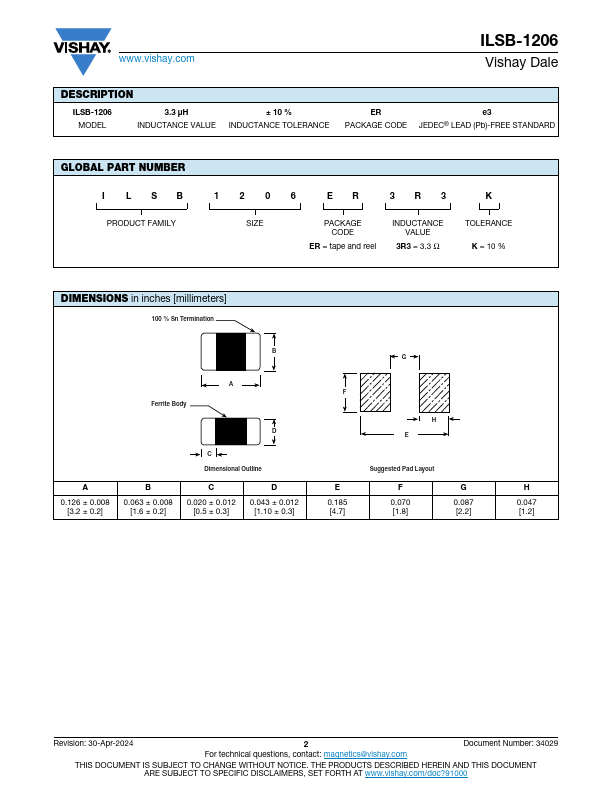

ILSB-1206 MODEL 3.3 μH INDUCTANCE VALUE ± 10 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I LSB PRODUCT FAMILY 1206 ER 3R3 K SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 3R3 = 3.3 Ω TOLERANCE K = 10 % DIMENSIONS in inches [millimeters] 100 % Sn Termination B A Ferrite Body D C Dimensional Outline A 0.126 ± 0.008 [3.2 ± 0.2] B 0.063 ± 0.008 [1.6 ± 0.2] C 0.020 ± 0.012 [0.5 ± 0.3] D 0.043 ± 0.012 [1.10 ± 0.3] G F H E

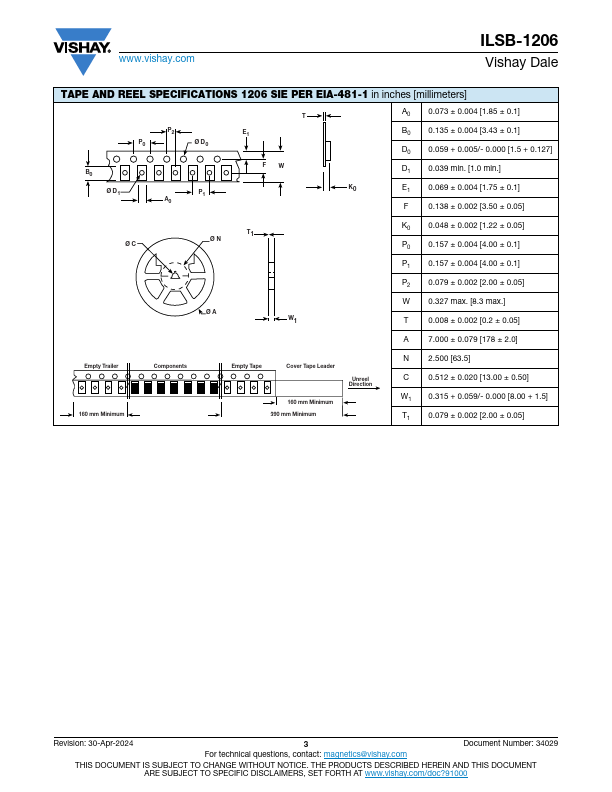

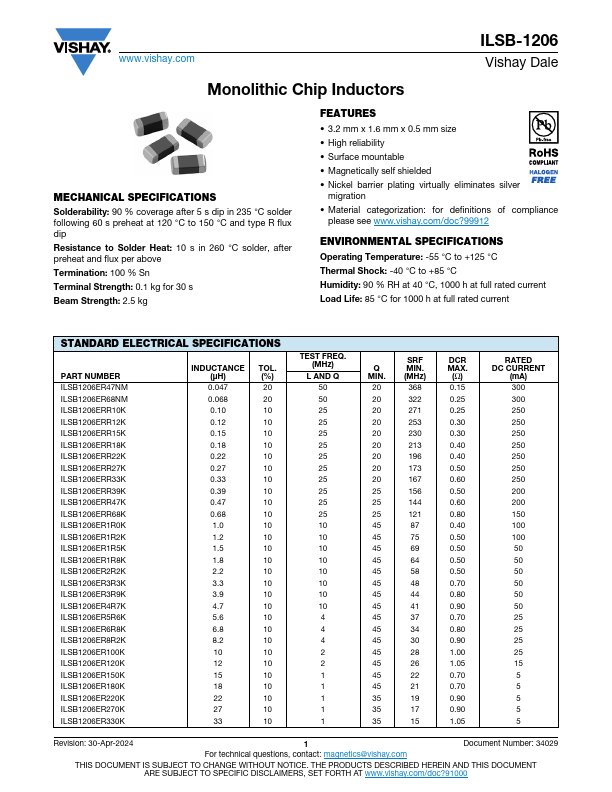

Features

3.2 mm x 1.6 mm x 0.5 mm size.
High reliability.
Surface mountable.
Magnetically self shielded.
Nickel barrier plating virtually eliminates silver migration.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
