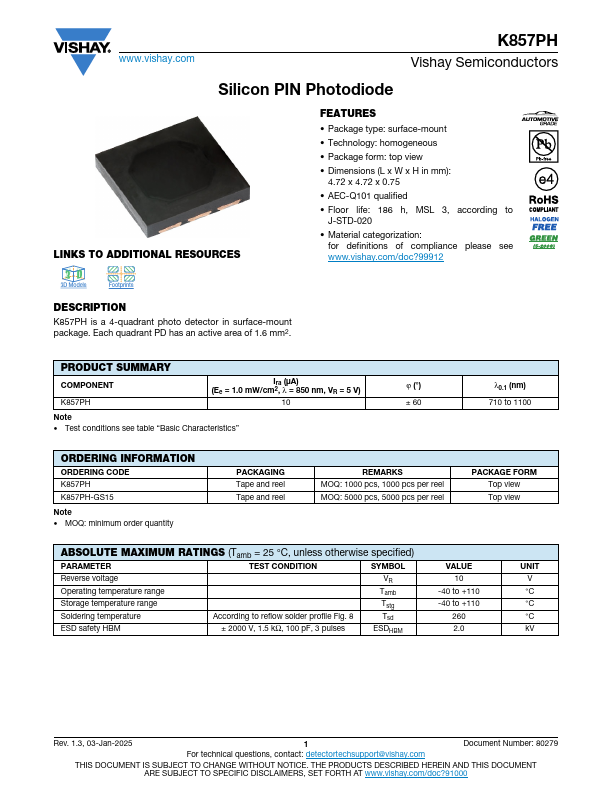

K857PH Silicon PIN Photodiode

K857PH is a 4-quadrant photo detector in surface-mount package. Each quadrant PD has an active area of 1.6 mm2. PRODUCT SUMMARY COMPONENT K857PH Ira (μA) (Ee = 1.0 mW/cm2, λ = 850 nm, VR = 5 V) 10 ϕ (°) ± 60 Note * Test conditions see table “Basic Characteristics” λ0.1 (nm) 710 to 1100.

K857PH Features

* Package type: surface-mount

* Technology: homogeneous

* Package form: top view

* Dimensions (L x W x H in mm): 4.72 x 4.72 x 0.75

* AEC-Q101 qualified

* Floor life: 186 h, MSL 3, according to J-STD-020

* Material categorization: for definitio
