L2010 - SMD Wraparound Ultra Low Value Thin Film Resistors

L2010 Description

www.vishay.com L Vishay Sfernice SMD Wraparound Ultra Low Value Thin Film Resistors ADDITIONAL RESOURCES 3D 3D 3D Models With extremely low resista.

L2010 Features

* NiCr + Ta2O5 resistive layer
* Pre-soldered or gold terminations

L2010 Applications

* Alumina substrates for high power handling capability
* Resistance range: 0.1  to 9.99  Available Available
* TCR down to 50 ppm/°C Available
* Power rating: up to 2 W at +70 °C
* Withstand AEC-Q200 humidity test
* Material categorization: fo

📥 Download Datasheet

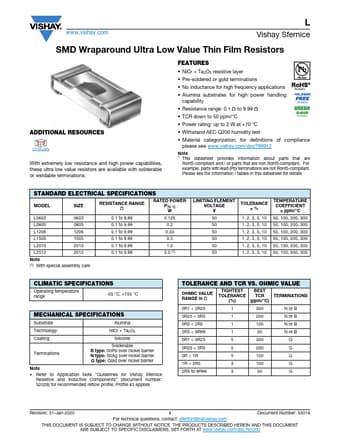

Preview of L2010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L2010
Manufacturer
Vishay ↗
File Size
144.26 KB
Datasheet
L2010-Vishay.pdf
Description
SMD Wraparound Ultra Low Value Thin Film Resistors
