LH1540AT - 1 Form A Solid-State Relay

This page provides the datasheet information for the LH1540AT, a member of the LH1540AAB 1 Form A Solid-State Relay family.

Description

The LH1540 is robust, ideal for telecom and ground fault applications.

It is an SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications.

It is constructed using a GaAlAs LED for actuation control and MOSFETs for the switch output.

Gene

Features

  • Isolation test voltage 5300 VRMS A1 6 S1.
  • Typical RON 22 Ω.
  • Load voltage 350 V C2 5 DC.
  • Load current 120 mA / 250 mA.
  • Clean bounce free switching 3 4 S2.
  • Low power consumption.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.

📥 Download Datasheet

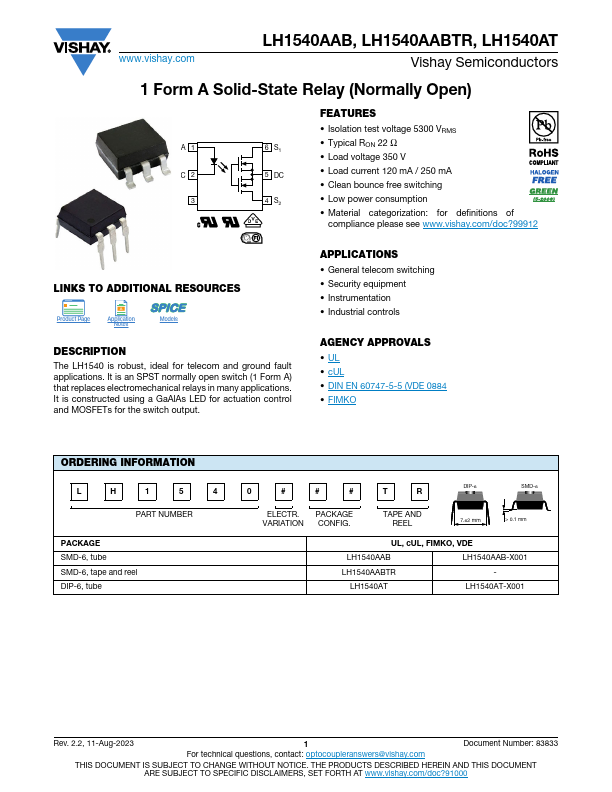

Datasheet preview – LH1540AT

Datasheet Details

Part number LH1540AT
Manufacturer Vishay
File Size 214.51 KB
Description 1 Form A Solid-State Relay
Datasheet download datasheet LH1540AT Datasheet

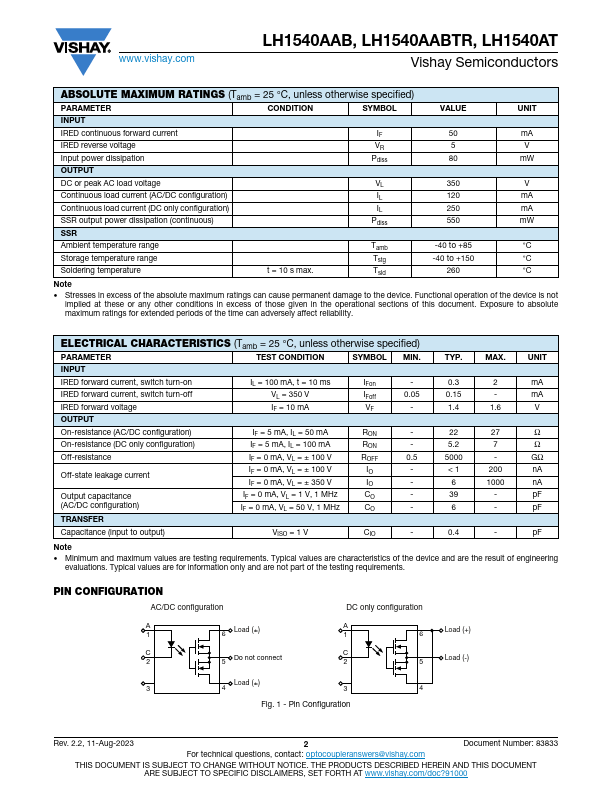

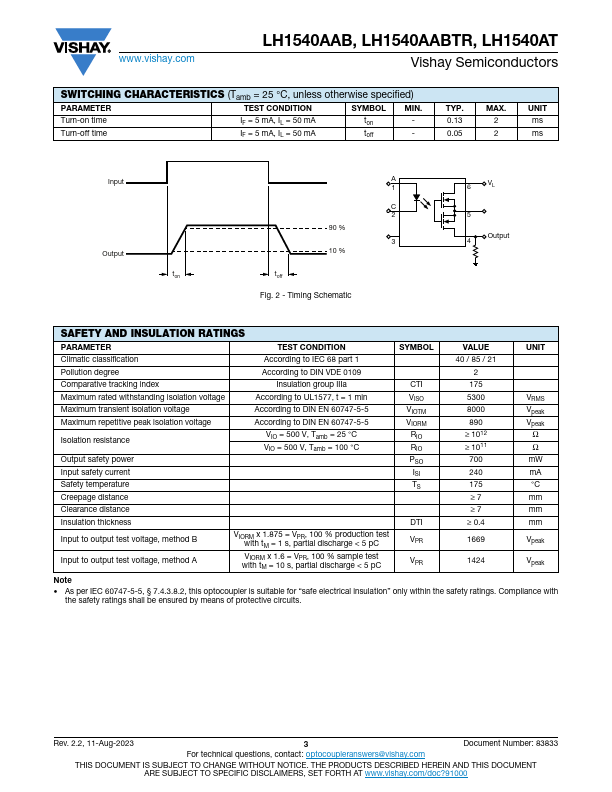

Additional preview pages of the LH1540AT datasheet.

📁 Similar Datasheet

  • LH1540AT - 1 Form A Solid State Relay (Infineon Technologies)
  • LH1540AAB - 1 Form A Solid State Relay (Infineon Technologies)
  • LH1540AABTR - 1 Form A Solid State Relay (Infineon Technologies)
  • LH1540 - HIGH VOLTAGE/ SOLID STATE RELAY OPTOCOUPLER (Siemens Semiconductor Group)
  • LH1540 - High Voltage Optically Coupled Solid (Siemens)
  • LH1541 - High Voltage Optically Coupled Solid (Siemens)
  • LH1541AAB1 - 1 Form A Solid State Relay (Vishay Siliconix)
  • LH1541AAB1 - 1 Form A Solid State Relay (Vishay Siliconix)
  • LH1541AAB1TR - 1 Form A Solid State Relay (Vishay Siliconix)
  • LH1541AAB1TR - 1 Form A Solid State Relay (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com LH1540AAB, LH1540AABTR, LH1540AT Vishay Semiconductors 1 Form A Solid-State Relay (Normally Open) FEATURES • Isolation test voltage 5300 VRMS A1 6 S1 • Typical RON 22 Ω • Load voltage 350 V C2 5 DC • Load current 120 mA / 250 mA • Clean bounce free switching 3 4 S2 • Low power consumption • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 LINKS TO ADDITIONAL RESOURCES Product Page Application Notes Models DESCRIPTION The LH1540 is robust, ideal for telecom and ground fault applications. It is an SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and MOSFETs for the switch output.
