LL4151 - Small Signal Fast Switching Diode

LL4151 Description

www.vishay.com LL4151 Vishay Semiconductors Small Signal Fast Switching Diode .

LL4151 Features

* Silicon epitaxial planar diodes
* Electrical data identical with the device 1N4151

LL4151 Applications

* Extreme fast switches LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes / options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5 per 7" re

📥 Download Datasheet

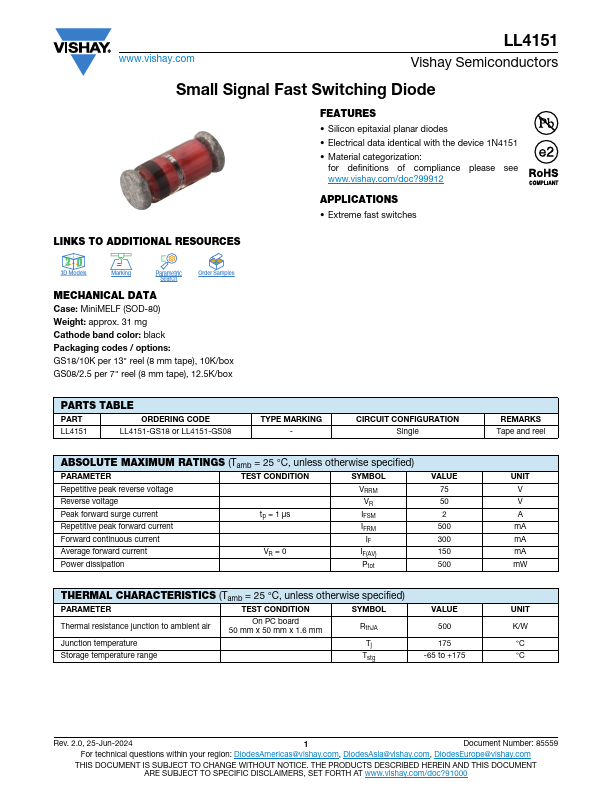

Preview of LL4151 PDF

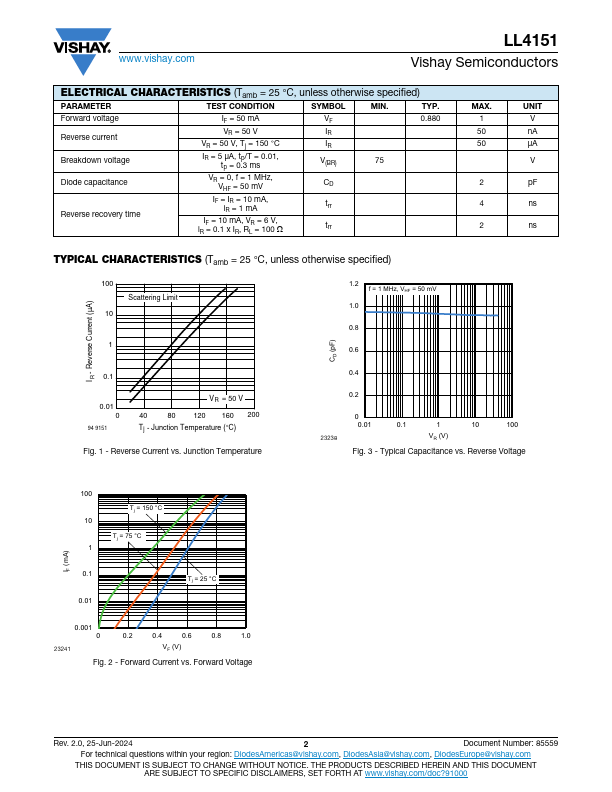

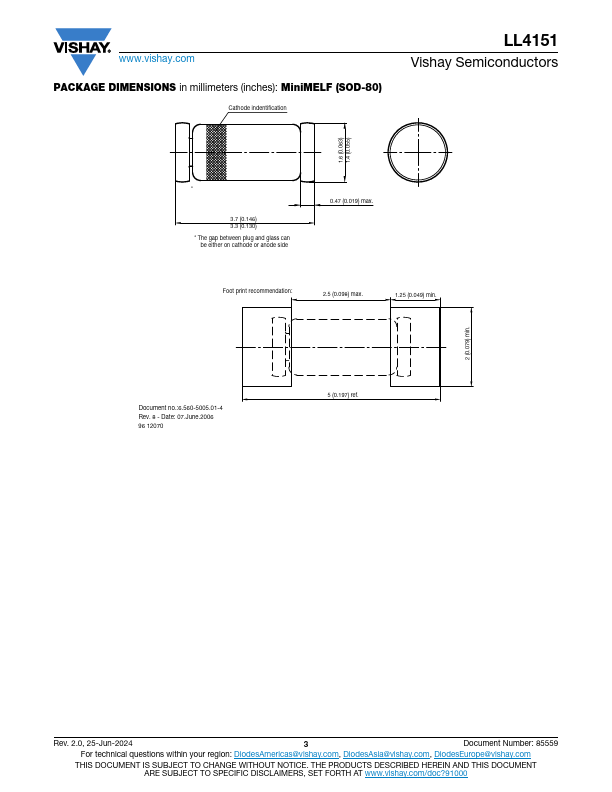

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LL4151
Manufacturer
Vishay ↗
File Size
112.49 KB
Datasheet
LL4151-Vishay.pdf
Description
Small Signal Fast Switching Diode
