LL4154-M - Small Signal Fast Switching Diode

LL4154-M Description

www.vishay.com LL4154-M Vishay Semiconductors Small Signal Fast Switching Diode .

LL4154-M Features

* Silicon epitaxial planar diodes
* Electrical data identical with the device 1N4154

LL4154-M Applications

* Extreme fast switches LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/2.5K per 7" reel

📥 Download Datasheet

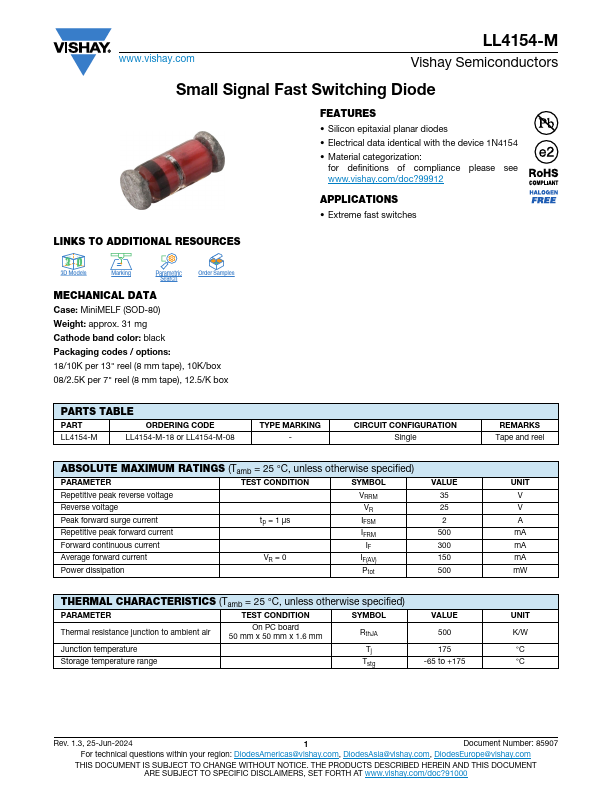

Preview of LL4154-M PDF

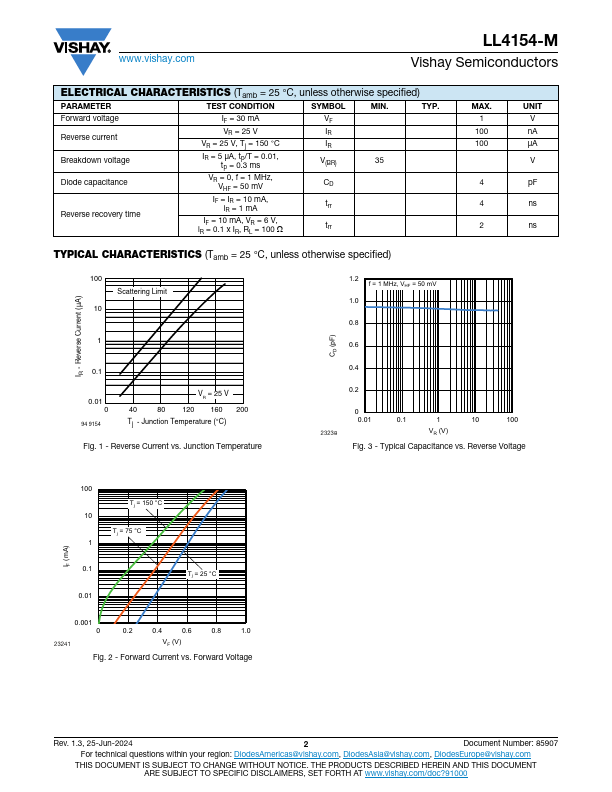

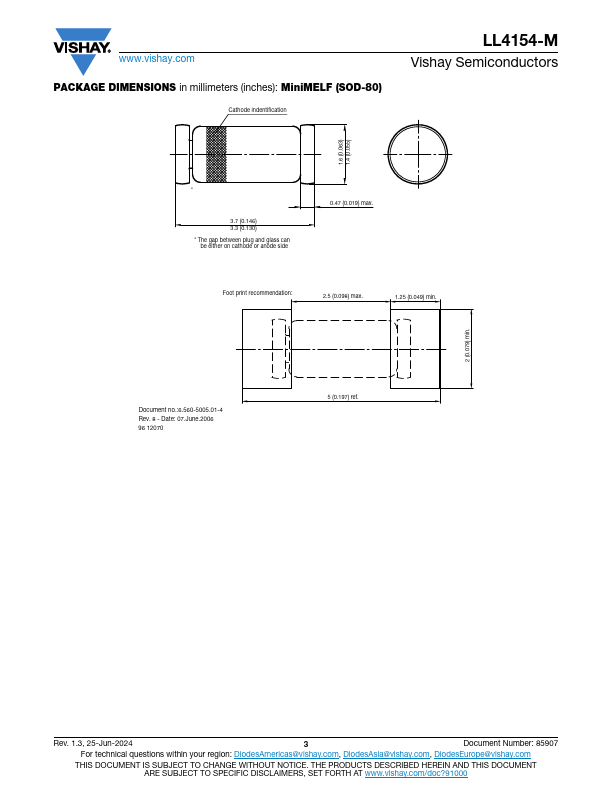

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LL4154-M
Manufacturer
Vishay ↗
File Size
113.91 KB
Datasheet
LL4154-M-Vishay.pdf
Description
Small Signal Fast Switching Diode
