LL5711 Schottky Diodes

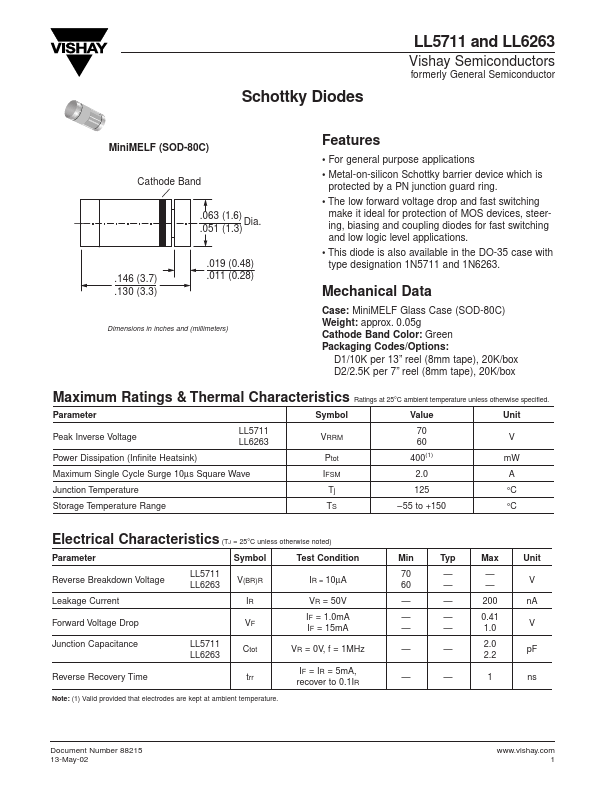

📥 Download Datasheet Datasheet Preview Page 1

Description

Schottky Diodes LL5711 and LL6263 Vishay Semiconductors formerly General Semiconductor MiniMELF (SOD-80C) Cathode Band .063 (1.6) Dia..051 (1.3) .

📥 Download Datasheet

Preview of LL5711 PDF

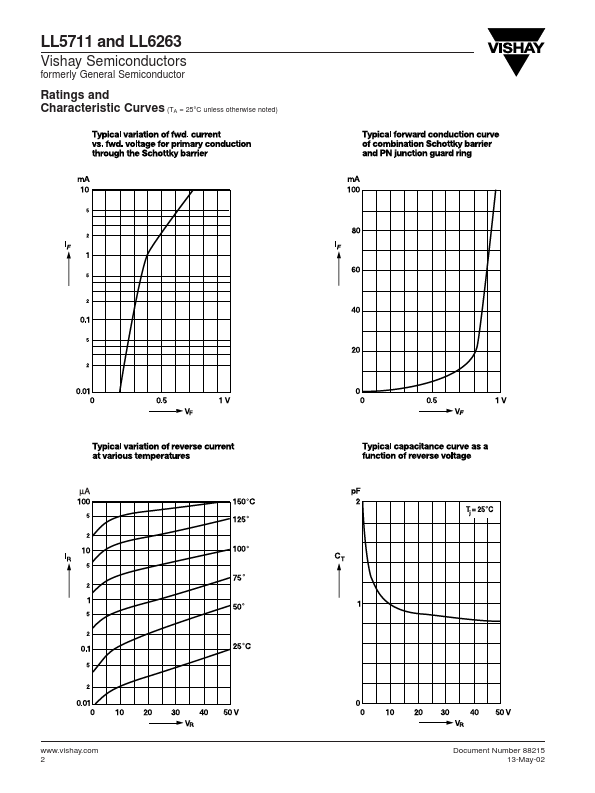

datasheet Preview Page 2

Datasheet Specifications

Part number
LL5711
Manufacturer
Vishay ↗
File Size
68.58 KB
Datasheet
LL5711-Vishay.pdf
Description
Schottky Diodes

Applications

* Metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring.
* The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications.
