M2035S-E3, Schottky Barrier Rectifier

www.vishay.com M2035S-E3, M2045S-E3 Vishay General Semiconductor Schottky Barrier Rectifier TO-220AB 3 2 1 12 3 CASE PRIMARY CHARACTERISTICS IF(.

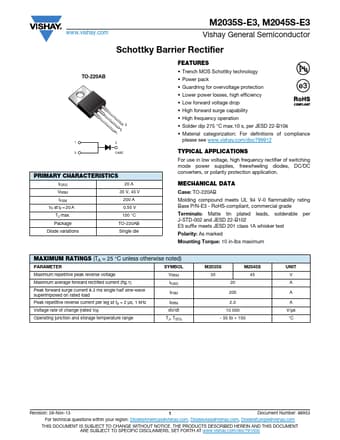

datasheet Preview Page 1 from Datasheet4u.com

M2035S-E3-Vishay.pdf

M2035S-E3 Datasheet Preview — Preview of M2035S-E3 PDF

Datasheet Details

Part number:

M2035S-E3

Manufacturer:

Vishay ↗

File Size:

113.18 KB

Description:

Schottky Barrier Rectifier

Features

* Trench MOS Schottky technology
* Power pack
* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max.10

Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application. MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals:
