M6060C, M6035C, Dual Common-Cathode Schottky Rectifier

www.vishay.com M6035C thru M6060C Vishay General Semiconductor Dual Common-Cathode Schottky Rectifier TO-220AB PIN 1 PIN 3 1 23 PIN 2 CASE FEATU.

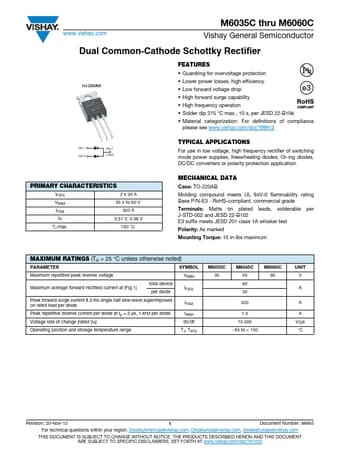

datasheet Preview Page 1 from Datasheet4u.com

M6035C-Vishay.pdf

M6060C Datasheet Preview — This datasheet PDF includes multiple part numbers: M6060C, M6035C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M6060C, M6035C

Manufacturer:

Vishay ↗

File Size:

85.29 KB

Description:

Dual Common-Cathode Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: M6060C, M6035C.
Please refer to the document for exact specifications by model.

Features

* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. , 10 s, per JESD 22-B106
* Material categorization: For d

Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, Or-ing diodes, DC/DC converters or polarity protection application. PRIMARY CHARACTERISTICS IF(AV) 2 x 30 A VRRM 35 V to 60 V IFSM 320 A VF 0.51 V, 0.56 V TJ max. 150 °C MECHANICAL DATA
