MALLEY01AV447C02W - Aluminum Capacitors

Vishay

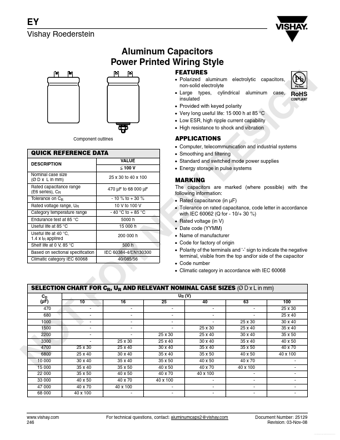

MALLEY01AV447C02W Datasheet Preview — Preview of MALLEY01AV447C02W PDF

Datasheet Details

Part number	MALLEY01AV447C02W
Manufacturer	Vishay ↗
File Size	108.45 KB
Description	Aluminum Capacitors
Datasheet	MALLEY01AV447C02W_Vishay.pdf

MALLEY01AV447C02W Product details

Description

Nominal case size (Ø D x L in mm) Rated capacitance range (E6 series), CR Tolerance on CR Rated voltage range, UR Category temperature range Endurance test at 85 °C Useful life at 85 °C Useful life at 40 °C, 1.4 x IR applired Shelf life at 0 V, 85 °C Based on sectional specification Climatic category IEC 60068 VALUE ≤ 100 V 25 x 30 to 40 x 100 470 µF to 68 000 µF - 10 % to + 30 % 10 V to 100 V - 40 °C to + 85 °C 5000 h 15 000 h 200 000 h 500 h MARKING IE

Features

Polarized aluminum electrolytic capacitors, non-solid electrolyte.
Large types, cylindrical aluminum case, insulated.
Provided with keyed polarity.
Very long useful life: 15 000 h at 85 °C.
Low ESR, high ripple current capability.
High resistance to shock and vibration Component outlines.
