MBR3035WTPbF - Schottky Rectifier

Datasheet Summary

Description

The MBR30..WTPbF center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature.

Features

  • 150 °C TJ operation.
  • Center tap TO-247 package Pb-free.
  • Very low forward voltage drop.
  • High frequency operation.
  • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Available RoHS.

📥 Download Datasheet

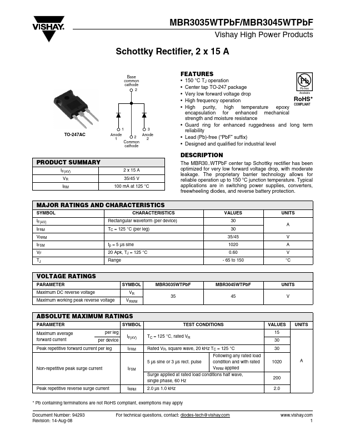

Datasheet preview – MBR3035WTPbF

Datasheet Details

Part number MBR3035WTPbF
Manufacturer Vishay
File Size 105.21 KB
Description Schottky Rectifier
Datasheet download datasheet MBR3035WTPbF Datasheet
Additional preview pages of the MBR3035WTPbF datasheet.

📁 Similar Datasheet

  • MBR3035WT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBR3035WT - 30 Amp Schottky Barrier Rectifier 20 to 60 Volts (Micro Commercial Components)
  • MBR3035WT - 30 A SCHOTTKY RECTIFIERS (Digitron Semiconductors)
  • MBR3035WT - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR3035W - 30 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3035 - Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3035 - SCHOTTKY BARRIER RECTIFIER (Byte)
  • MBR3035CT - Schottky Barrier Rectifier (INCHANGE)
  • MBR3035CT - SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MBR3035CT - Schottky Barrier Rectifier (Micro Commercial Components)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
MBR3035WTPbF/MBR3045WTPbF Vishay High Power Products Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC 13 Anode 1 2 Anode 2 Common cathode PRODUCT SUMMARY IF(AV) VR IRM 2 x 15 A 35/45 V 100 mA at 125 °C FEATURES • 150 °C TJ operation • Center tap TO-247 package Pb-free • Very low forward voltage drop • High frequency operation • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Available RoHS* COMPLIANT • Guard ring for enhanced ruggedness and long term reliability • Lead (Pb)-free (“PbF” suffix) • Designed and qualified for industrial level DESCRIPTION The MBR30..WTPbF center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.
