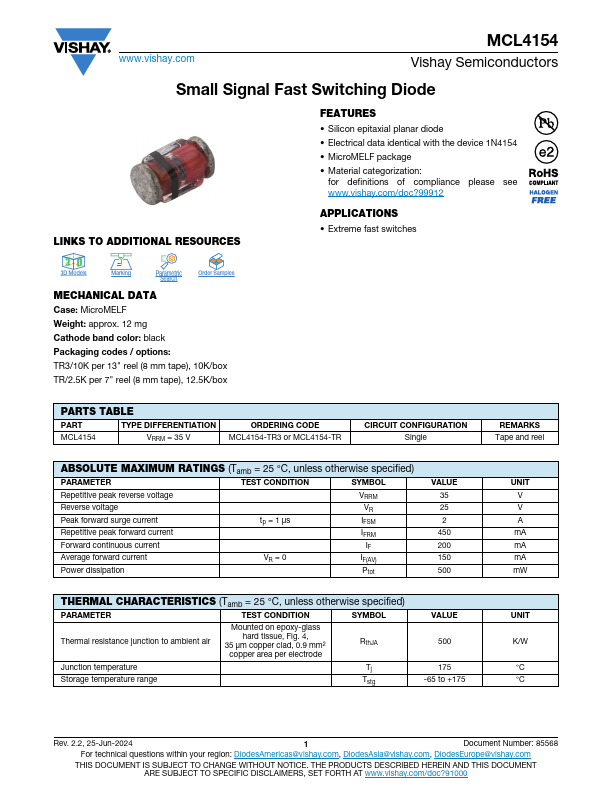

MCL4154
FEATURES
- Silicon epitaxial planar diode
- Electrical data identical with the device 1N4154
- Micro MELF package
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- Extreme fast switches
PARTS TABLE
PART
TYPE DIFFERENTIATION
VRRM = 35 V
ORDERING CODE MCL4154-TR3 or MCL4154-TR
CIRCUIT CONFIGURATION Single
REMARKS Tape and reel
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
Repetitive peak reverse voltage Reverse voltage Peak forward surge current Repetitive peak forward current Forward continuous current Average forward current Power dissipation tp = 1 μs VR = 0
VRRM VR IFSM IFRM IF IF(AV) Ptot
VALUE 35 25 2 450 200 150 500
UNIT V V A m A m A m A m W
THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
Thermal resistance junction to ambient air
Mounted on epoxy-glass hard tissue, Fig. 4, 35 μm copper clad, 0.9...
