MCT0603AT Datasheet - Vishay

MCT0603AT High Stability Thin Film Flat Chip Resistors

MCR 0201 AT MCS 0402 AT MCT 0603 AT MCU 0805 AT MCA 1206 AT Imperial size 0201 0402 0603 0805 1206 Metric size code RR0603M RR1005M RR1608M RR2012M RR3216M Resistance range 22 Ω to 40 kΩ 1 Ω to 1 MΩ; 0Ω 1 Ω to 2 MΩ; 0Ω 1 Ω to 7.5 MΩ; 1 Ω to 10 MΩ; 0Ω 0Ω Resistance tolerance .

MCT0603AT Features

* Rated dissipation P70 up to 0.52 W for size 1206

* AEC-Q200 qualified

* IECQ-CECC approved to EN 140401-801

* Operating temperature up to 175 °C

* Superior temperature cycling robustness

* Superior moisture resistivity, |ΔR/R| < 0.1 % (85 °C; 85 % RH

MCT0603AT Datasheet (171.53 KB)

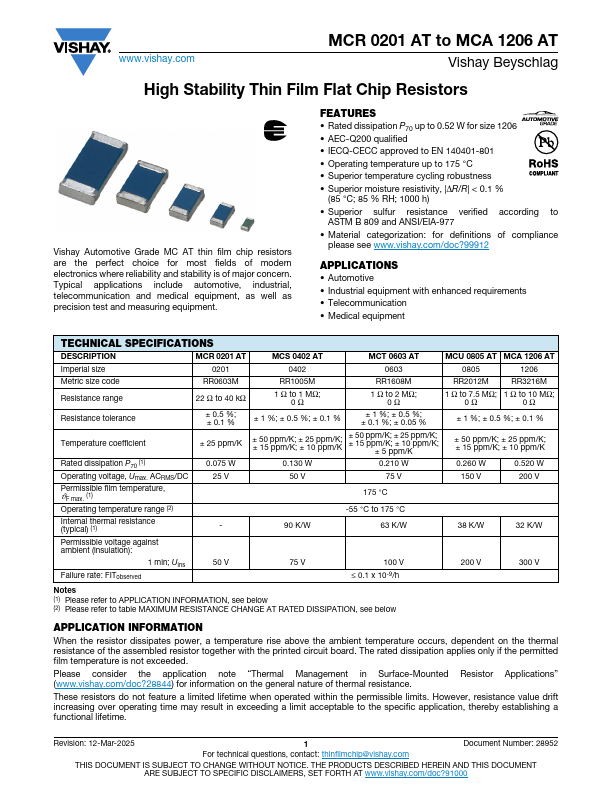

Preview of MCT0603AT PDF

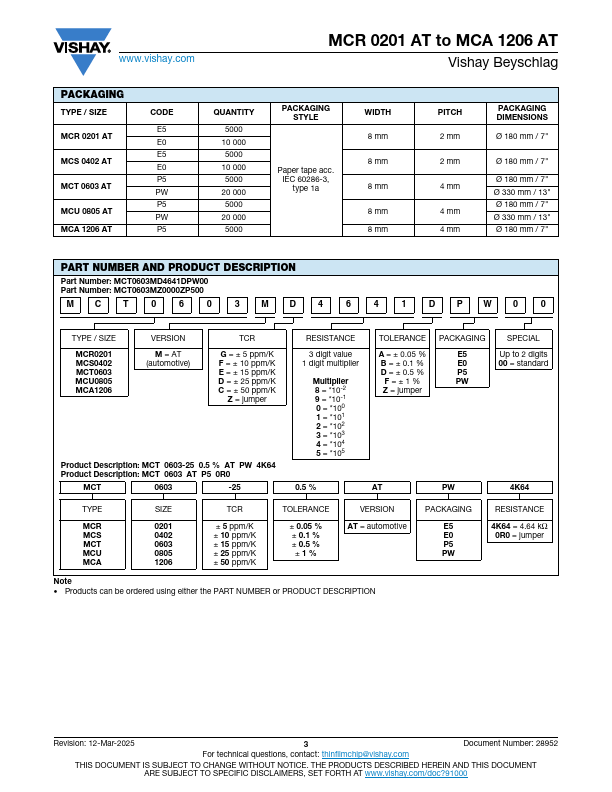

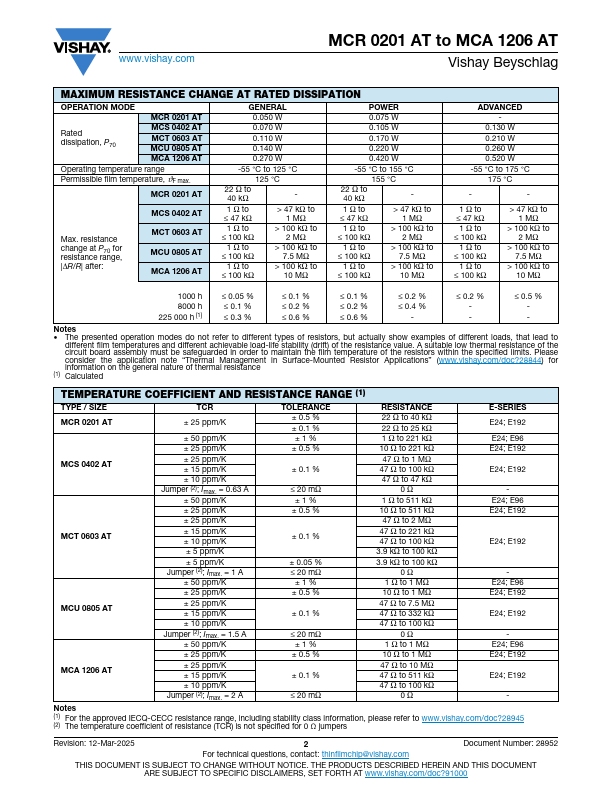

MCT0603AT Datasheet Preview Page 2 MCT0603AT Datasheet Preview Page 3

Datasheet Details

Part number:

MCT0603AT

Manufacturer:

Vishay ↗

File Size:

171.53 KB

Description:

High stability thin film flat chip resistors.
