MMBZ5240-V, MMBZ5225-V - Small Signal Zener Diodes

MMBZ5240-V Description

MMBZ5225-V to MMBZ5267-V Vishay Semiconductors Small Signal Zener Diodes .

MMBZ5240-V Features

* Silicon planar power zener diodes.
* Standard Zener voltage tolerance is ± 5 % with a "B" suffix (e. g. : MMBZ5225B-V), suffix “C” is ± 2 % tolerance.
* High temperature soldering guaranteed: 260 °C/ 4x 10 s at terminals.
* These diodes are also available in MiniMELF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMBZ5240-V, MMBZ5225-V. Please refer to the document for exact specifications by model.

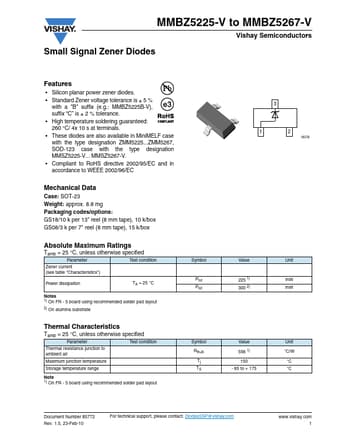

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBZ5240-V, MMBZ5225-V
Manufacturer
Vishay ↗
File Size
75.94 KB
Datasheet
MMBZ5225-V-Vishay.pdf
Description
Small Signal Zener Diodes
Note
This datasheet PDF includes multiple part numbers: MMBZ5240-V, MMBZ5225-V.
Please refer to the document for exact specifications by model.
