MMSZ5225-V

Small Signal Zener Diodes

MMSZ5225-V Features

* Silicon planar power Zener diodes

* Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e.g.: MMSZ5225B-V), suffix “C” is ± 2 % tolerance

* These diodes are also available in MiniMELF case with the designation TZM5225 to TZM5267, DO-35 case with type designation 1N

MMSZ5225-V Datasheet (75.27 KB)

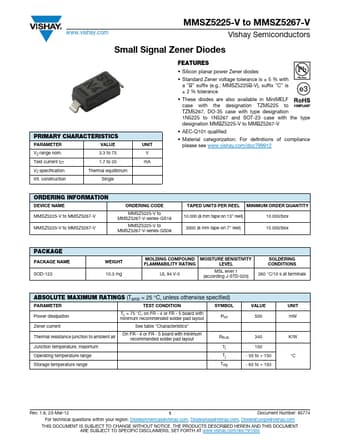

Preview of MMSZ5225-V PDF

Datasheet Details

Part number:

MMSZ5225-V

Manufacturer:

Vishay ↗

File Size:

75.27 KB

Description:

Small signal zener diodes.
www.vishay.com MMSZ5225-V to MMSZ5267-V Vishay Semiconductors Small Signal Zener Diodes PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Te.
