MUR160-E3, MUR140-E3 Ultrafast Plastic Rectifier

MUR160-E3 Description

www.vishay.com MUR140-E3, MUR160-E3 Vishay General Semiconductor Ultrafast Plastic Rectifier DO-204AC (DO-15) .

MUR160-E3 Features

* Glass passivated chip junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

MUR160-E3 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-204AC (DO-15) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR160-E3, MUR140-E3. Please refer to the document for exact specifications by model.

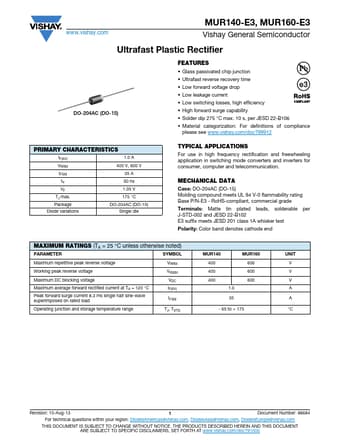

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR160-E3, MUR140-E3
Manufacturer
Vishay ↗
File Size
68.18 KB
Datasheet
MUR140-E3-Vishay.pdf
Description
Ultrafast Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: MUR160-E3, MUR140-E3.
Please refer to the document for exact specifications by model.
