NTCLE300E3502SB, NTCLE201E3302SB Datasheet - Vishay

NTCLE300E3502SB NTC Thermistors

These negative temperature coefficient thermistors consist of a mini-chip soldered between two AWG#30 ETFE insulated (LE300) or non-insulated (LE201) 0.3 mm nickel leads and coated with a solid ocher color epoxy lacquer PACKAGING The thermistors are packed in cardboard boxes; the smallest packing q.
www.vishay.com NTCLE201E3SB, NTCLE300E3SB Vishay BCcomponents NTC Thermistors, 2-Point Mini Chip Sensor, Flexible Leads ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools QUICK REFERENCE DATA PARAMETER Resistance value at 25 °C Tolerance on R25-value B25/85-value Tolerance on B25/85-value Operating temperature range at zero dissipation Accuracy for T measured between 0 °C and 50 °C Maximum power dissipation at 55 °C Min. dielectric withstanding voltage between terminals and coated body Wei.

NTCLE300E3502SB Features

* Accuracy of 0.5 °C between 0 °C and 50 °C

* Small 2.4 mm diameter

* High stability over a long life

* Long and flexible leads for special mounting or assembly requirements

* AEC-Q200 qualified

* Material categorization: for definitions of compliance

NTCLE201E3302SB-Vishay.pdf

This datasheet PDF includes multiple part numbers: NTCLE300E3502SB, NTCLE201E3302SB. Please refer to the document for exact specifications by model.

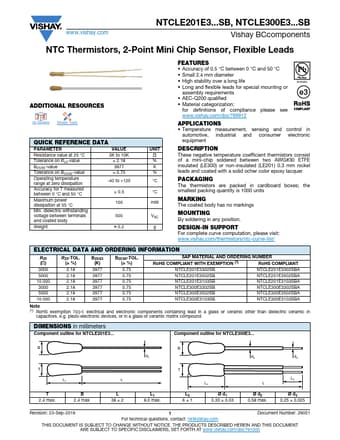

NTCLE300E3502SB Datasheet Preview Page 2 NTCLE300E3502SB Datasheet Preview Page 3

Datasheet Details

Part number:

NTCLE300E3502SB, NTCLE201E3302SB

Manufacturer:

Vishay ↗

File Size:

77.00 KB

Description:

Ntc thermistors.

Note:

This datasheet PDF includes multiple part numbers: NTCLE300E3502SB, NTCLE201E3302SB.
Please refer to the document for exact specifications by model.
