NTHS0805, NTHS0603 - (NTHSxxxx) NTC Chip Termistors

Vishay

📥 Download Datasheet

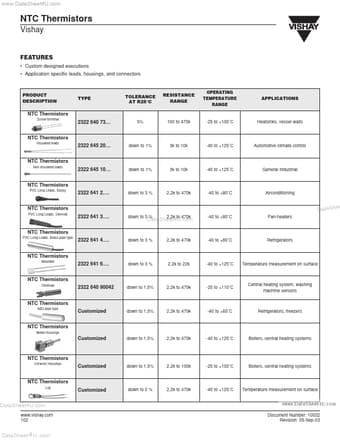

NTHS0805 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTHS0805, NTHS0603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NTHS0805, NTHS0603
Manufacturer	Vishay
File Size	2.44 MB
Description	(NTHSxxxx) NTC Chip Termistors
Datasheet	NTHS0603_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: NTHS0805, NTHS0603. Please refer to the document for exact specifications by model.

NTHS0805 Product details

Description

TYPE TOLERANCE AT R25°C RESISTANCE RANGE OPERATING TEMPERATURE RANGE APPLICATIONS NTC Thermistors Screw terminal 2322 640 73… 5% 100 to 470k -25 to +100˚C Heatsinks, vessel walls NTC Thermistors Insulated leads 2322 645 20… down to 1% 3k to 10k -40 to +125˚C Automotive climate control NTC Thermistors Non-insulated leads 2322 645 10… down to 1% 3k to 10k -40 to +125˚C General Industrial NTC Thermistors PVC Long Leads, Epoxy 2322 641 2….down to 3 % 2,2k to 470k -40 to

Features

Custom designed executions.
