P4KA33A, P4KA6.8 - Transient Voltage Suppressors

Name: P4KA33A
SKU: P4KA33A-1226083

Vishay

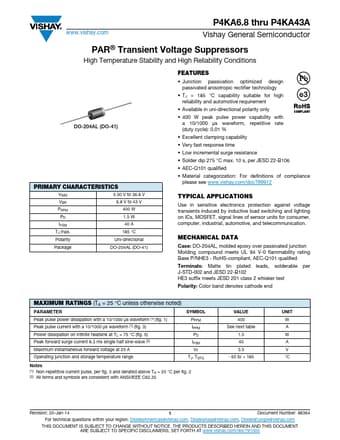

The P4KA33A by Vishay is a Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	P4KA33A, P4KA6.8
Manufacturer	Vishay
File Size	90.08 KB
Description	Transient Voltage Suppressors
Datasheet	P4KA6.8-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: P4KA33A, P4KA6.8. Please refer to the document for exact specifications by model.
Additional preview pages of the P4KA33A datasheet.

Junction passivation optimized design passivated anisotropic rectifier technology.
TJ = 185 °C capability suitable for high reliability and automotive requirement.
Available in uni-directional polarity only.
400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %.
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Solder dip 275 °C max. 10 s,.
