PTV9.1B, PTV3.9B Surface Mount Power Voltage-Regulating Diodes

PTV9.1B Description

www.vishay.com PTV3.9B thru PTV36B Vishay General Semiconductor Surface Mount Power Voltage-Regulating Diodes eSMP® Series DO-220AA (SMP) PRIMARY.

PTV9.1B Features

* Very low profile - typical height of 1.0 mm
* Ideal for automated placement
* Low Zener impedance
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 MECHA

PTV9.1B Applications

* For general purpose regulation and protection applications. PACKAGE PACKAGE NAME DO-220AA (SMP) WEIGHT 24 mg MOLDING COMPOUND MOISTURE SENSITIVITY FLAMMABILITY RATING LEVEL UL 94 V-0 MSL level 1 (according J-STD-020) SOLDERING CONDITIONS 260 °C/10 s at terminals MAXIMUM RATINGS (TA = 25 °C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PTV9.1B, PTV3.9B. Please refer to the document for exact specifications by model.

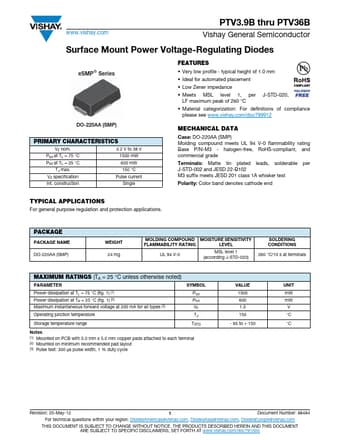

datasheet Preview Page 2 datasheet Preview Page 3
