RCMS05, RCMS02 - Molded Metal Film High Stability Resistors

Vishay

📥 Download Datasheet

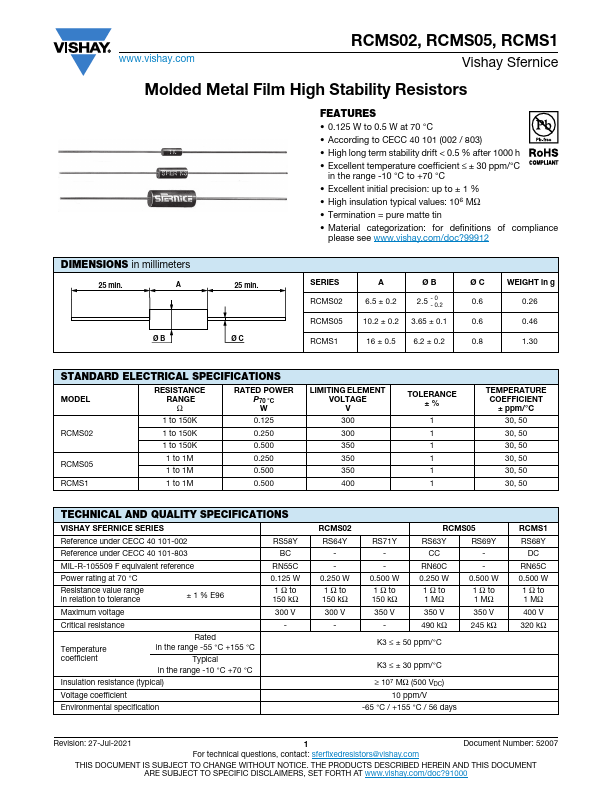

RCMS05 Datasheet Preview — This datasheet PDF includes multiple part numbers: RCMS05, RCMS02. Please refer to the document for exact specifications by model.

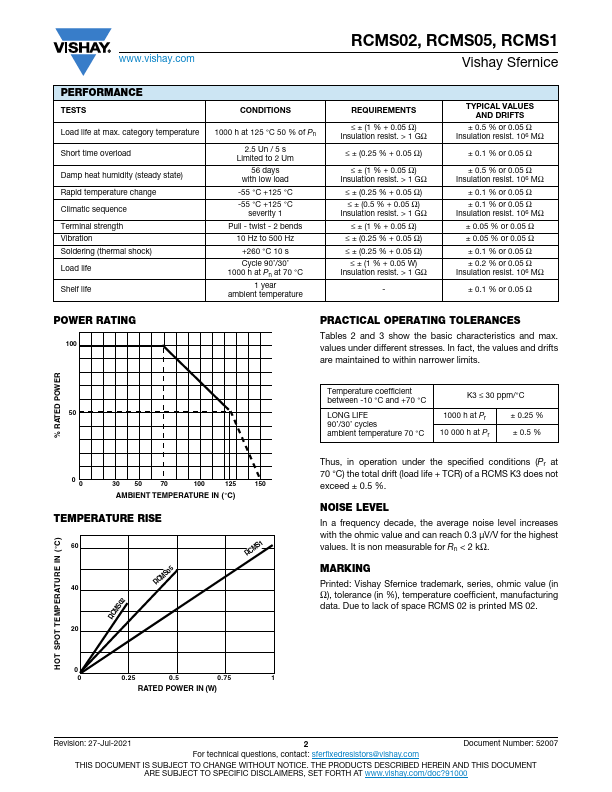

datasheet Preview Page 2

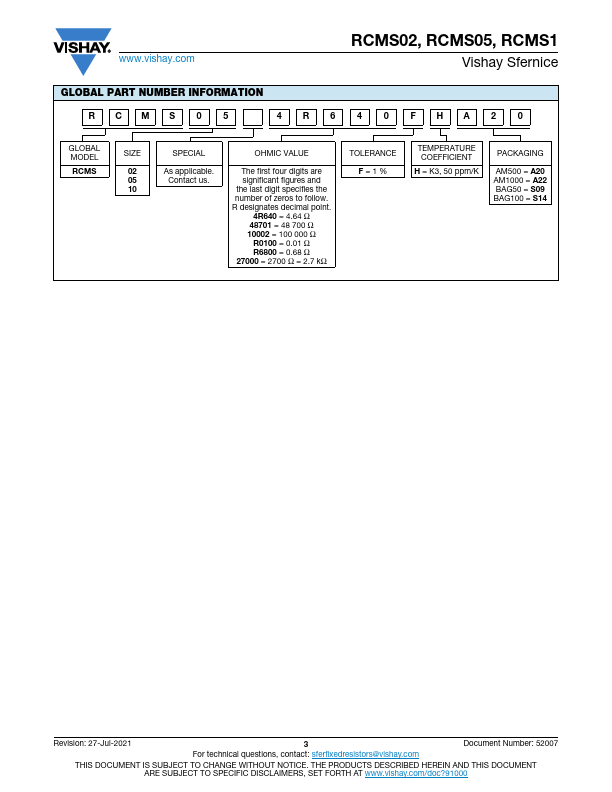

datasheet Preview Page 3

Datasheet Details

Part number	RCMS05, RCMS02
Manufacturer	Vishay ↗
File Size	78.09 KB
Description	Molded Metal Film High Stability Resistors
Datasheet	RCMS02-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RCMS05, RCMS02. Please refer to the document for exact specifications by model.

RCMS05 Product details

Features

0.125 W to 0.5 W at 70 °C.
According to CECC 40 101 (002 / 803).
High long term stability drift < 0.5 % after 1000 h.
Excellent temperature coefficient ≤ ± 30 ppm/°C in the range -10 °C to +70 °C.
Excellent initial precision: up to ± 1 %.
High insulation typical values: 106 MΩ.
Termination = pure matte tin.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
