RCP1206, RCP0505 - Thick Film Chip Resistors

Vishay

📥 Download Datasheet

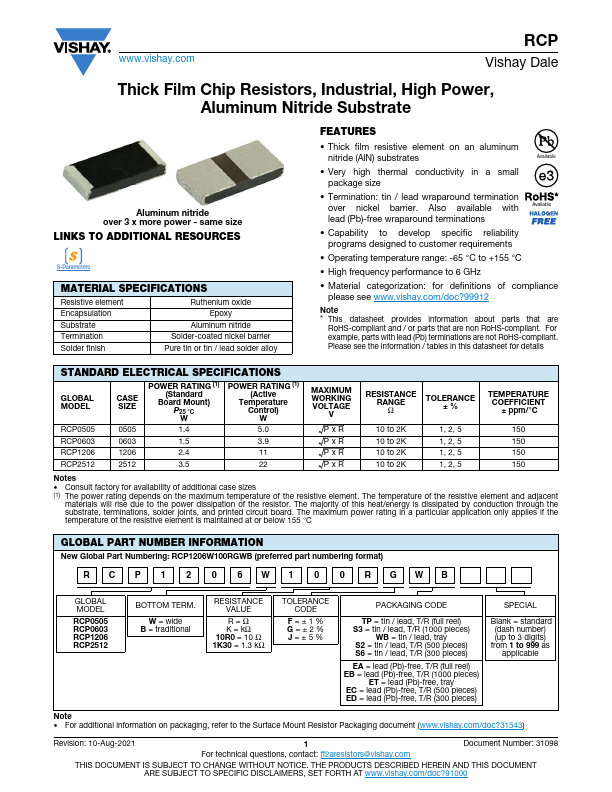

RCP1206 Datasheet Preview — This datasheet PDF includes multiple part numbers: RCP1206, RCP0505. Please refer to the document for exact specifications by model.

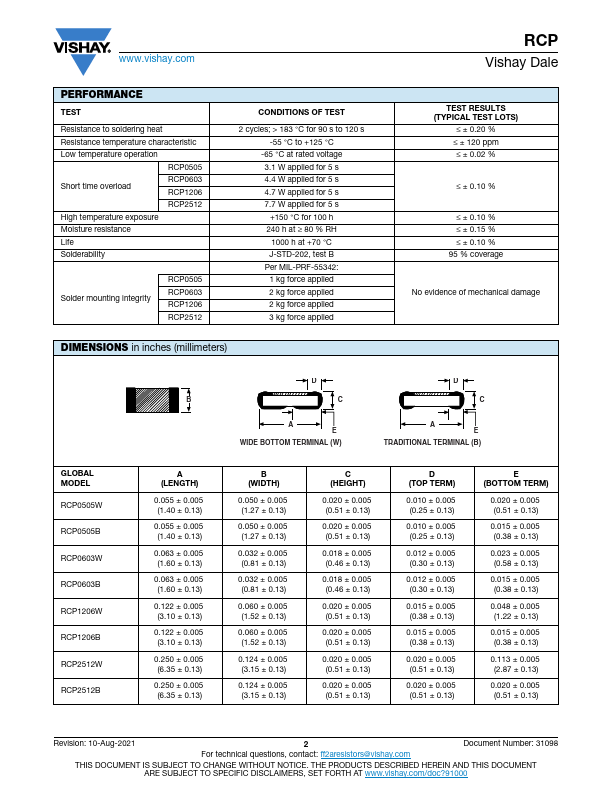

datasheet Preview Page 2

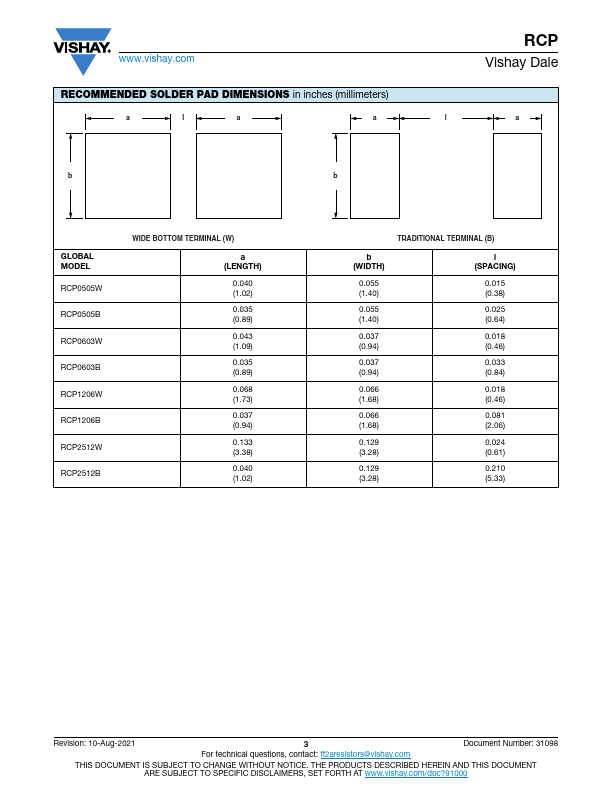

datasheet Preview Page 3

Datasheet Details

Part number	RCP1206, RCP0505
Manufacturer	Vishay ↗
File Size	88.20 KB
Description	Thick Film Chip Resistors
Datasheet	RCP0505-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RCP1206, RCP0505. Please refer to the document for exact specifications by model.

RCP1206 Product details

Features

Thick film resistive element on an aluminum nitride (AlN) substrates Available.
Very high thermal conductivity in a small package size.
Termination: tin / lead wraparound termination over nickel barrier. Also available with lead (Pb)-free wraparound terminations Available.
Capability to develop specific reliability programs designed to customer requirements.
Operating temperature range: -65 °C to +155 °C.
High frequency performance t.
