RCWPM-1206, RCWPM - Thick Film Chip Resistors

Name: RCWPM-1206
SKU: RCWPM-1206-1148840

Vishay

The RCWPM-1206 by Vishay is a Thick Film Chip Resistors. Below is the official datasheet preview.

Datasheet Details

Part number	RCWPM-1206, RCWPM
Manufacturer	Vishay
File Size	82.43 KB
Description	Thick Film Chip Resistors
Datasheet	RCWPM-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RCWPM-1206, RCWPM. Please refer to the document for exact specifications by model.

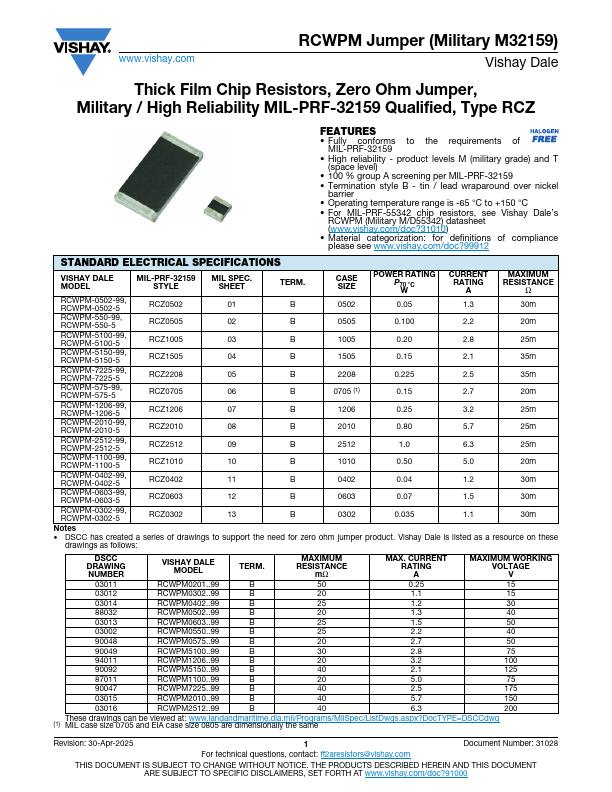

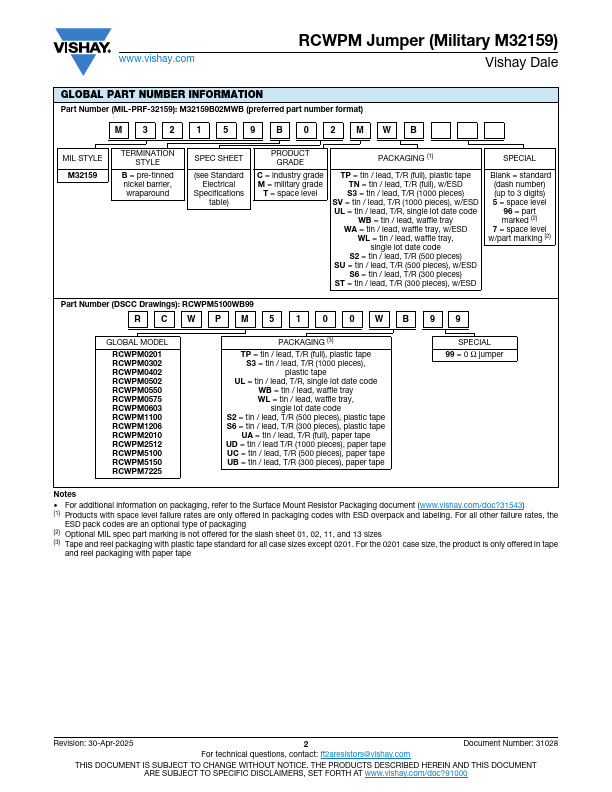

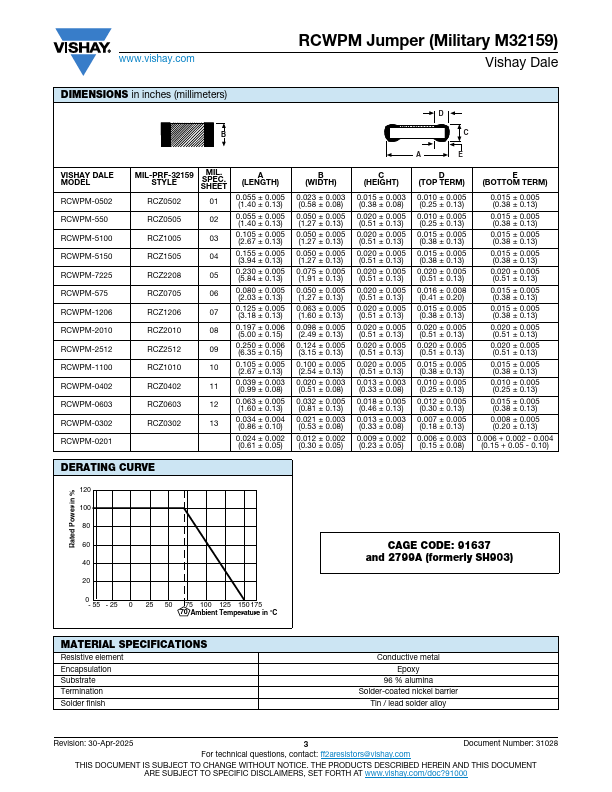

Additional preview pages of the RCWPM-1206 datasheet.

Fully conforms to the requirements of MIL-PRF-32159.
High reliability - product levels M (military grade) and T (space level).
100 % group A screening per MIL-PRF-32159.
Termination style B - tin / lead wraparound over nickel barrier.
Operating temperature range is -65 °C to +150 °C.
For MIL-PRF-55342 chip resistors, see Vishay Dale’s RCWPM (Military M/D55342) datasheet (www. vishay. com/doc?31010).
Material categorization: for defini.
