RFLW3N3000B, RFLW3N3900C High Frequency Wire Bondable RF Spiral Inductor

Vishay

Description

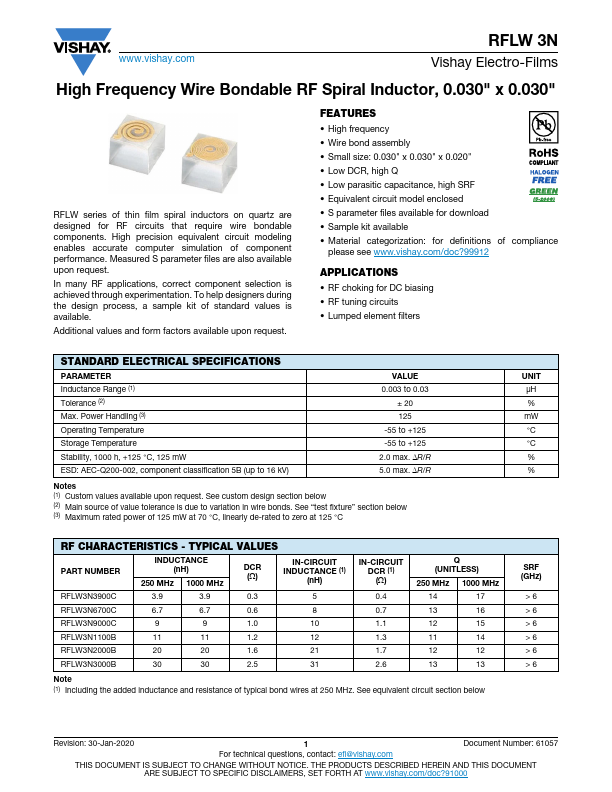

www.vishay.com RFLW 3N Vishay Electro-Films High Frequency Wire Bondable RF Spiral Inductor, 0.030" x 0.030" RFLW series of thin film spiral induct.

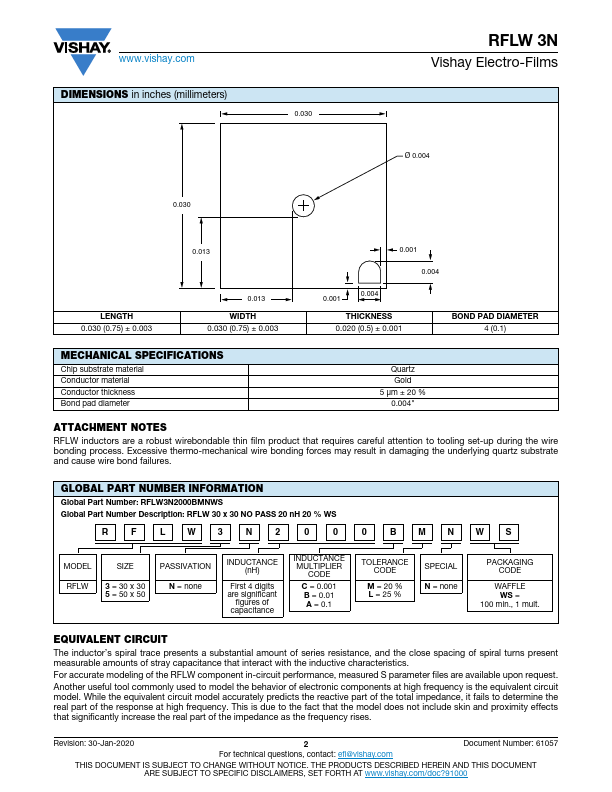

RFLW 30 x 30 NO PASS 20 nH 20 % WS R F LW3 N 2 0 0 0 BMNWS MODEL SIZE PASSIVATION RFLW 3 = 30 x 30 5 = 50 x 50 N = none INDUCTANCE (n.

📥 Download Datasheet

RFLW3N3000B Datasheet Preview — This datasheet PDF includes multiple part numbers: RFLW3N3000B, RFLW3N3900C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RFLW3N3000B, RFLW3N3900C
Manufacturer: Vishay ↗
File Size: 377.10 KB
Datasheet: RFLW3N3900C-Vishay.pdf
Description: High Frequency Wire Bondable RF Spiral Inductor
Note: This datasheet PDF includes multiple part numbers: RFLW3N3000B, RFLW3N3900C.
Please refer to the document for exact specifications by model.

Features

* High frequency
* Wire bond assembly
* Small size: 0.030" x 0.030" x 0.020"
* Low DCR, high Q
* Low parasitic capacitance, high SRF

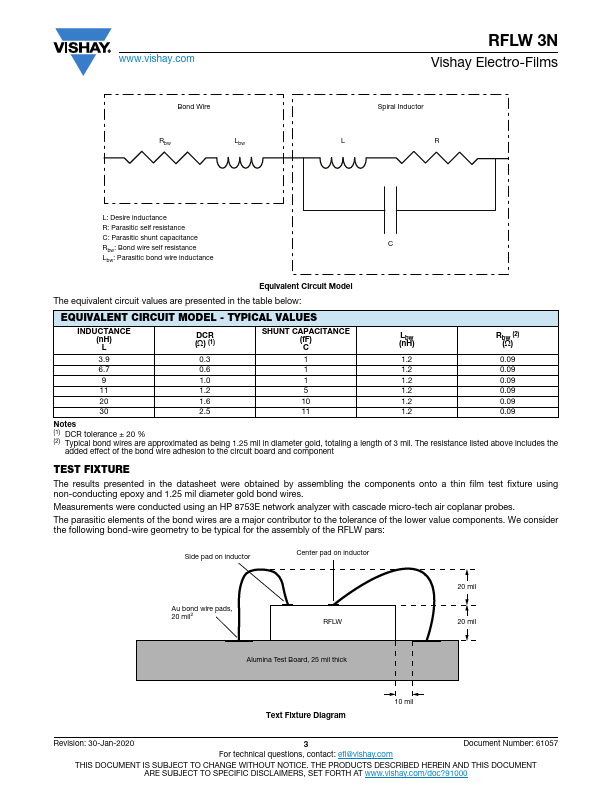

* Equivalent circuit model enclosed
* S parameter files available for download
* Sample kit available
