RG4B, RG4A - Fast Sinterglass Diode

Vishay

📥 Download Datasheet

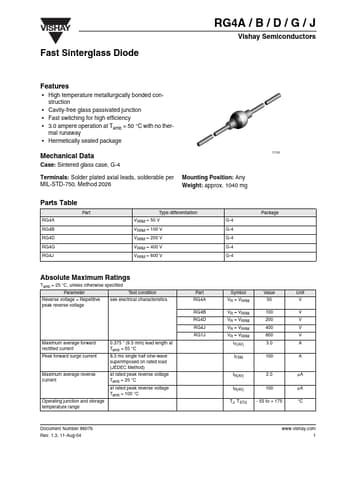

RG4B Datasheet Preview — This datasheet PDF includes multiple part numbers: RG4B, RG4A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RG4B, RG4A
Manufacturer	Vishay ↗
File Size	117.29 KB
Description	Fast Sinterglass Diode
Datasheet	RG4A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RG4B, RG4A. Please refer to the document for exact specifications by model.

RG4B Product details

Features

High temperature metallurgically bonded construction.
Cavity-free glass passivated junction.
Fast switching for high efficiency.
3.0 ampere operation at Tamb = 50 °C with no ther- mal runaway.
Hermetically sealed package Mechanical Data Case: Sintered glass case, G-4 Terminals: Solder plated axial leads, solderable per Mounting Position: Any MIL-STD-750, Method 2026 Weight: approx. 1040 mg 17133 Parts Table RG4A Part RG4B RG4D RG4G RG4J.
